DeFelsko UTGM3-E Positector UTG M3 Advanced Ultrasonic Thickness Gage with PRBUTGM-C Multiple Echo Probe, Thru-Paint Capability, Probe Type 5 MHz Contact, Range Multiplo Echo: 0.100" to 2.500"



Price: $ 2,095.00

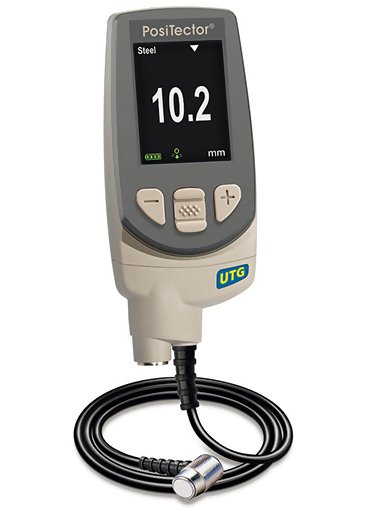

DeFelsko UTGM3-E PosiTector UTG M3 Advanced Ultrasonic Thickness Gage with Multiple Echo Probe
DeFelsko UTGM3-E PosiTector UTG M3 Advanced Ultrasonic Thickness Gage with PRBUTGM-C Multiple Echo Probe, 5 MHz Contact
Measuring Range Multiplo Echo: 0.100" to 2.500" (2.50 to 60.00 mm)
Thru-Paint Capability (Multiple Echo): Measures the metal thickness of a painted structure without having to remove the coating.

The DeFelsko UTGM3-E Positector UTG M3 Advanced Ultrasonic Thickness Gage with PRBUTGM-C Multiple Echo Probe measures the wall thickness of materials such as steel, plastic and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes or any structure where access is limited to one side. Multiple echo (UTG M) Thru-Paint models measure the metal thickness of a painted structure without having to remove the coating.


line
Kit Contents
line

The DeFelsko PosiTector UTG M3 Advaned Ultrasonic Thickness Gage Kit includes everything needed for testing:

  • PosiTector Advanced Gage Body BDYADV
  • PosiTector UTG M Probe PRBUTGM
  • Couplant (ultrasonic gel)
  • Precision plastic shims
  • Protective rubber holster with belt clip
  • Wrist strap
  • 3 AAA alkaline batteries
  • Protective lens shield
  • PosiSoft Software and USB cable
  • Long Form Certificate of Calibration traceable to NIST
  • Nylon carrying case with shoulder strap and instructions
  • Two (2) year warranty


line
Photo Gallery
line

DeFelsko PosiTector UTG Ultrasonic Wall Thickness Gages Gallery 1 DeFelsko PosiTector UTG Ultrasonic Wall Thickness Gages Gallery 2 DeFelsko PosiTector UTG Ultrasonic Wall Thickness Gages Gallery 3 DeFelsko PosiTector UTG Ultrasonic Wall Thickness Gages Gallery 4 DeFelsko PosiTector UTG Ultrasonic Wall Thickness Gages Gallery 5 DeFelsko PosiTector UTG Ultrasonic Wall Thickness Gages Gallery 6


line
Features
line

Simple

  • Large, easy-to-read, graphics LCD
  • Pre-programmed velocities Simply select from a list of common materials or enter your own with ease
  • Smart Couple Eliminates inadvertent decoupling - ideal for analyzing large areas using multiple passes
  • Enhanced one-handed menu navigation
  • Flashing display ideal in a noisy environment
  • RESET feature instantly restores factory settings

Durable

  • Braided stainless steel cable and heavy-duty strain reliefs for demanding applications (PosiTector UTG CX only)
  • Impact resistant lens
  • Wear-resistant probe tip
  • Shock-absorbing, protective rubber holster with belt clip
  • Two year warranty on gage body AND probe

Accurate

  • Precision ultrasonic transducers provide fast, accurate readings
  • Certificate of Calibration (Long Form) showing traceability to NIST included
  • Conforms to national and international standards including ASTM E797
  • Built-in temperature compensation ensures measurement accuracy

Versatile

  • High contrast LCD with backlit display
  • Single or two point adjustment
  • Inch/mm switchable
  • Selectable display languages
  • Flip display enables right-side-up viewing
  • Uses alkaline or rechargeable batteries (built-in charger)

Powerful

  • Min Scan - measurement rate of up to 20 readings per second with onscreen min and max for quick inspection over a large area
  • Statistics Mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • Sealed USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included
  • Software Updates via web keep your gage current
  • Screen Capture record and save image into USB flash memory for record keeping and review
  • Software Solutions for viewing, analyzing & reporting data
  • Every stored measurement is date and time stamped


line
Advanced Model Features
line

Includes ALL features as shown on left plus

Storage of 100,000 readings in up to 1,000 batches

  • A-Scan with adjustable Gain and screen capture
  • B-Scandisplays a cross sectional profile of the test material
  • Real-time graphing, picture prompting and batch notes
  • Onscreen Batch Annotationadd notes, change batch names and more with built-in QWERTY keyboard
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
  • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols


line
PosiSoft Suite of Software
line

Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More


line
FAQ's - Frequently Asked Questions
line

Click to View DeFelsko PosiTector UTGFrequently Asked Questions


lineDownloadsline

DeFelsko UTGM3-E PosiTector UTG M3 Advanced Ultrasonic Thickness Gage - Ordering Guide
DeFelsko UTGM3-E PosiTector UTG M3 Advanced Ultrasonic Thickness Gage - Full Instruction Manual
DeFelsko UTGM3-E PosiTector UTG M3 Advanced Ultrasonic Thickness Gage - Literature
DeFelsko UTGM3-E PosiTector UTG M3 Advanced Ultrasonic Thickness Gage - Quick Guide
DeFelsko PosiTector UTGUltrasonic Thickness Gage- Online Instruction Manual with Videos


lineBuy Nowline


Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
DeFelsko UTGM3-E Positector UTG M3 Advanced Ultrasonic Thickness Gage with PRBUTGM-C Multiple Echo Probe, Thru-Paint Capability, Probe Type 5 MHz Contact, Range Multiplo Echo: 0.100" to 2.500" $2,095.00
Accessories Price
UTGC Spare / Replacement PosiTector UTG Corrosion Probe Only PRBUTGC-C $715.00
UTGM Spare / Replacement PosiTector UTG Multiple Echo Probe Only PRBUTGM-C $1,415.00
BATTREAAA4PK Rechargeable Battery Pack $20.00
CF12 Coupling Fluid - 12oz $30.00
PRINTERBT Bluetooth Printer for PosiTector Advanced models Only $425.00
USBAC AC Power Adapter, 100-230V $45.00
LENSSHIELD-E Protective Lens Shield (pack of 5) $10.00
PAPERBT 10 rolls of printer paper $8.00
STDB1 5 Step Certified Steel Block B1 with inch units, 100, 200, 300, 400, 500 mil steps $325.00
STDB1M 5 Step Certified Steel Block B1M with metric units, 2.5, 5, 7.5, 10, 12.5 mm steps $325.00
GEL_P 4 oz Ultrasonic Gel, case of 12 $170.00
UTG Extreme Corrosion Probe Only - PRBUTGCX-C $815.00
