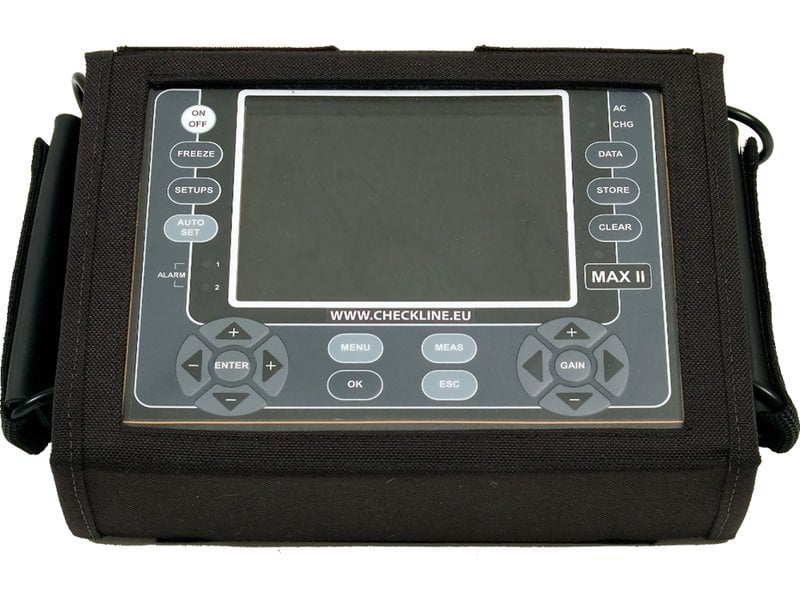

Dakota Ultrasonics BT2-DL (MAX-II) Ultrasonic Bolt Tension Meter Z-197-0001 / Z-197-0002
$5,968.00
Loading...
Loading product info...
Product Description
Dakota Ultrasonics Ultrasonic Bolt Tension Monitor - Extensometer
Transducers sold Separately
Connections:
Power Source:
Transducers:
Transducers sold Separately
The Dakota Ultrasonics BT2-DL (MAX-II) Ultrasonic Bolt Tension Meter Z-197-0001 / Z-197-0002 is designed for precision measurement of fasteners up to 100 ft / 30 m in length. It incorporates all of the great features of the originalMiniMax unit, with improved features, hardware, speed, and range. The MAX II is designed for use in a wide range of industrial and lab applications.

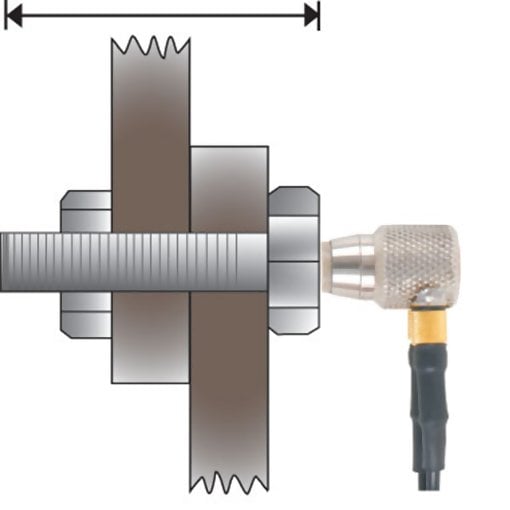

The Dakota Ultrasonics BT2-DL (MAX-II) Ultrasonic Bolt Tension Meter Z-197-0001 / Z-197-0002 enables you to accurately monitor bolt tension ultrasonically measuring the elongation (change in length) of your bolts. It enables you to re-visit your bolts in certain intervals and monitor the quality of your bolt connections over time.

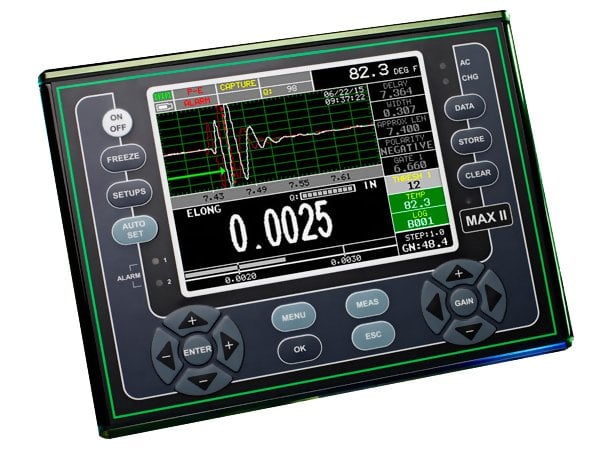

The new "Auto Correlation" feature that helps you to optimize your transducer placement. Together with the large QVGA sunlight readable color display and the calibration function, it is very easy to use without the steep learning curves associated with other models

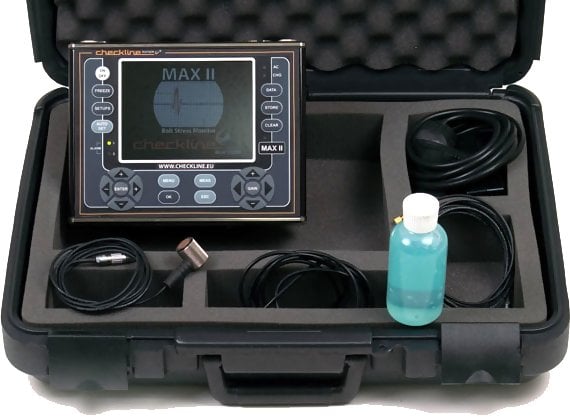

Kit Contents
- Dakota Ultrasonics BT2-DL (MAX-II) Ultrasonic Bolt Tension Meter Z-197-0001 / Z-197-0002
- 4 oz. Bottle of Couplant
- RS232 Transfer Cable Lemo to DB9
- USB converter cable to DB9
- 10 Lemo to Microdot Transducer cable (N-110-0020)
- PC Utility Software
- Certification
- Operation Manual
- Carrying Case
Features
- Measures: Elongation, Load, Stress, Strain and Time (nanoseconds).
- Sunlight readable color QVGA display (320x240 pixels)
- Measure Modes: Pulse-Echo, Echo- Echo, Echo-Echo-Verify (triple echo)
- Auto Correlation - Transducer Placement
- Custom auto calibration feature
- 4GB internal & up to 64GB external SD memory
- USB 1.1 connectivity
- Analog, serial & alarm outputs
- PC interface reporting software
- Li-Ion pack & 6 AA emergency battery backup option
- 2 year warranty
- Setups: 64 custom user defined setups; factory setups can also be edited by the user.
- Auto Set: Automates the detection, scope, and display setting process for each individual bolt.
- Gates: Three measurement gates, depending on measurement mode used, with adjustable start and threshold.
- Alarm Limits: Adjustable Hi/LO tolerances with visual LEDs and audible beeper. Hardware alarm outputs (accesory cable required).
- Field Calibration: Vector or Regression correction curve for increased accuracy using Load & Stress
Specifications
Measuring:
| Units | English (in), Metric (mm), or Time (s) |
| Velocity | 0.0492 to .5510 in/s (125013995 m/s) |
| Measurement Modes | Pulse-Echo (P-E), Echo-Echo (E-E), or Echo-Echo-Echo (E-EV) |
| Measurement Range | 1 to 999.999in (2540cm) in pulse-echo(P-E) measurement mode. Range will vary using multi-echo modes dependent on material type and consistency. |
| Detection | Zero Crossing |
| Resolution | +/- 0.00001 in (0.0001 mm) |
| Calibration | Automatic, Fixed, Single or Two-Point zero calibration options |
| Quantities | Time Nanoseconds.Elongation Change in length (inches/millimeters).Load Force load applied (pounds KIP or megapascals MPa).Stress Force for unit area stress applied (inches per inch or millimeters per millimeter).%Strain Ratio of elongation to effective length |
| Bolt Materials | Select types from a preset or custom list. |
Physical
| Weight | 4.5 lbs (2.04 kgs), with batteries |
| Size | 8.5W x 6.5H x 2.5D in (216 x 165 x 70mm) |
| Op Temperature | 14 to 140F (-10C to 60C) |
| Keyboard | Membrane switch with 21 tactile keys |
| Housing | Extruded aluminum body with nickel plated aluminum end caps (gasket sealed) |
| Display Views | RF (full wave view), +/- Rectified (half wave view), Digits, or split screen combination (wave plus large digits) |
| Environmental | Meets IP65 requirements |
Connections:
| SB | Direct USB 1.1 PC connectivity |
| Power Connector | 12v @ 2amps, adapter 100-240 VAC, .7 Amps, 50-60 Hz.5 Pin Lemo (includes):RS232Output RS232 PC serial interface.Alarm Outputs Two independent alarm outputs triggered by the gates.Analog Out Proportional outputs (amplitude or distance), 0-10 volts. |
| Transducer Connectors | Two LEMO 00 connectors |
Memory
| Log Formats | Grid (Alpha Numeric) |
| Capacity | 4 Gb internal & up to 64 Gb External SD slot |
| Screen Capture | Tagged interface file (.tif) capture for quick documentation |
| Custom Setups | 64 user configurations |
Power Source:
| Lithium Ion Pack | 10.8v, 2 amp hrs, typical operation 18hrs. |
| Battery Backup | Emergency battery backup. Six 1.5V alkaline, 1.2V AA Nicad cells, 1.2V AA NI-MH, or other other equivalent power source |
| Battery life (continuous use) | Alkaline (12 hrs), Nicad (5hrs), and NI-MH (12hrs), with default settings. |
Electronics:
| Display | Blanview sunlight readable QVGA TFT color display (320 x 240 pixels). Viewable area 4.54 x 3.40 in (115.2 x 86.4 mm), or 5.7 in (144.78 mm) diagonal. 16 color pallete, multiple color options and variable brightness |
| Screen Refresh Rate | 60Hz. Timing: Precision TCXO timing with single shot 100 MHz 8 bit ultra low power digitizer. |
| Pulser Types | Spike, Square Wave & Tone Burst.Pulser Voltage: 100 400v |
| Pulser Voltage | 100 400v |
| Pulse Width | Selectable step options Spike, Thin, Wide, HV Spike, HV Thin, HV Wide, TB .5MHz, TB 1MHz, TB 2MHz, TB 5MHz, TB 10 MHz. Spike 40 ns, Square Wave 80 to 400 ns, Tone Burst 50 ns to 1 microsecond. |
| Gain | 0 to 110dB with 0.2dB resolution. Manual and AGC control. |
| Damping | 50, 75, 100, 300, 600, & 1500 ohms. |
| Frequency Band | Broadband 1.8 19 MHz (-3dB) filter. |
| Horizontal Linearity | +/- 0.4% FSW |
| Vertical Linearity | +/- 1% FSH |
| Amplifier Linearity | +/- 1 dB |
| Amplitude Measurement | 0 to 100% FSH, with 1% resolution. |
| Delay | 0 999.999in (25,400mm) at steel velocity |
| Measurement Gates | Three independent gates depending on measurement mode selected, with audible and visual alarms. Amplitude 5-95%, 1% steps. |
Transducers:
| Types | Single element 1 MHz to 10 MHz frequencies, and 1/8 to 1 diameters. Magnetic & Non Magnetic options available |
| Glue-On | Available for short bolts with minimal/short elongations to eliminate transducer placement errors. |
| Connectors | Microdot, Lemo 00, or BNC options depending on the transducer model selected. |
| Custom Transducers | Available for special applications. |
General:
| Certification | Factory calibration traceable to NIST & MIL-STD-45662A |
| Warranty | 2 year limited |
