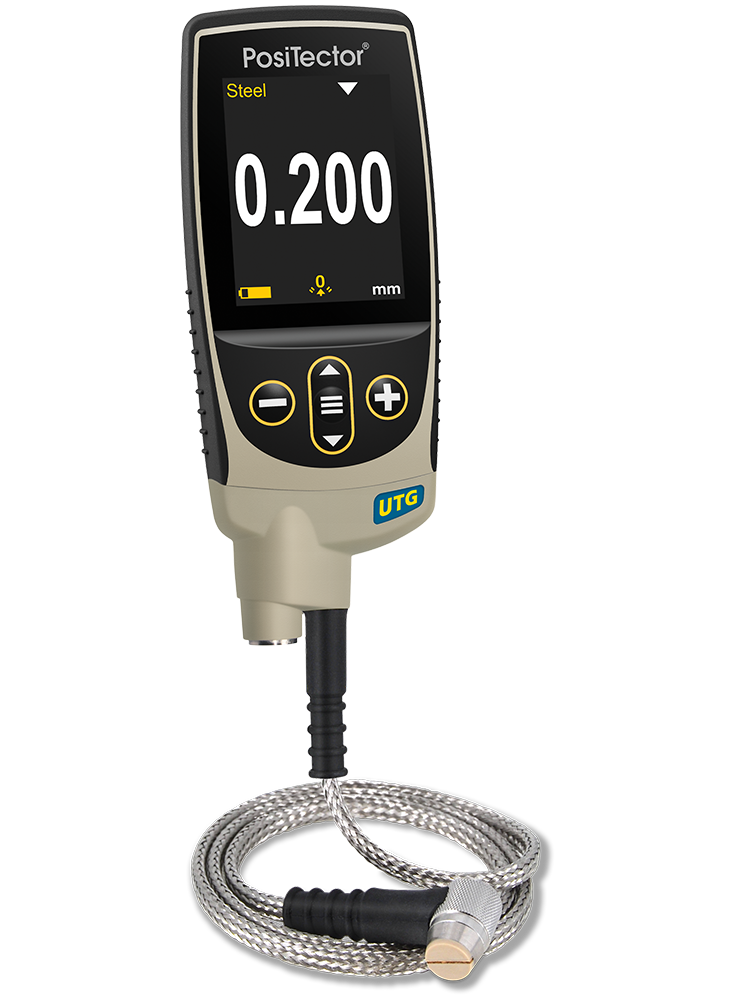

DeFelsko UTGCX1-G PosiTector UTG CX1 Standard Ultrasonic Thickness Gage with Xtreme Corrosion Probe

Measuring Range: 0.040" - 5.000" (1.00 - 125 mm)

The DeFelsko UTGCX1-G PosiTector UTG CX1 Standard Ultrasonic Thickness Gage measures the wall thickness of materials such as steel, plastic and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes or any structure where access is limited to one side. Multiple echo (UTG M) Thru-Paint models measure the metal thickness of a painted structure without having to remove the coating.

line
Kit Contents
line

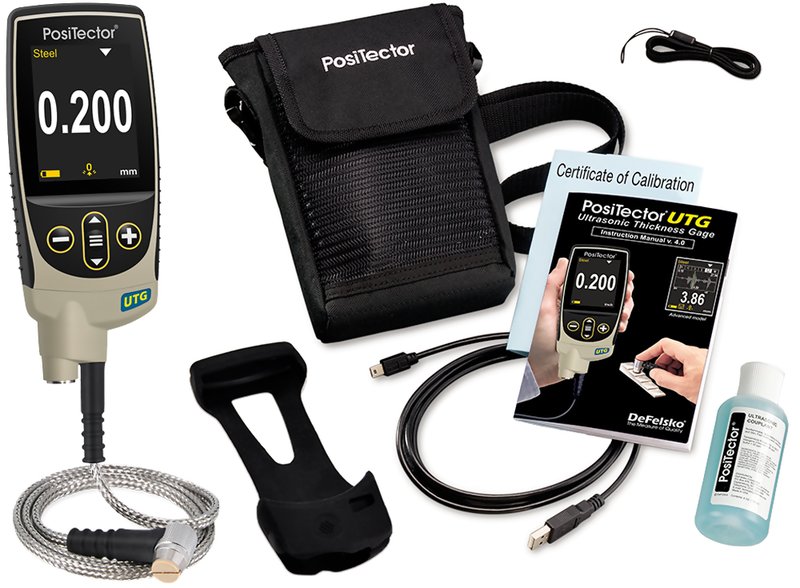

The DeFelsko PosiTector UTG CX1 Standard Ultrasonic Thickness Gage Kit includes everything needed for testing::

PosiTector Standard Gage Body BDYSTD-G

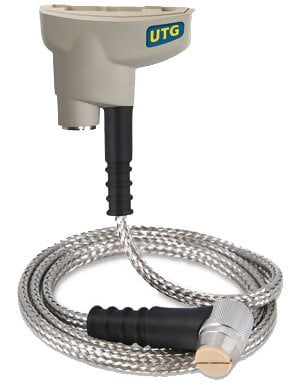

PosiTector UTG CX Probe PRBUTGCX
Couplant (ultrasonic gel)
Precision plastic shims
Protective rubber holster with belt clip
Wrist strap
3 AAA alkaline batteries
Protective lens shield
PosiSoft Software and USB cable
Long Form Certificate of Calibration traceable to NIST
Nylon carrying case with shoulder strap and instructions
Two (2) year warranty

line
Features
line

Simple

Pre-programmed velocitiessimply select from a list of common materials or enter your own with ease
Smart Couple mode eliminates unintentional decouplingensure continuous measurements while measuring on scaled or pitted surfacesideal for analyzing large areas using multiple passes
NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
NEW On-gage help explains menu items at the touch of a button
RESET feature instantly restores factory settings

Durable

NEW Weatherproof, dustproof, and water-resistantIP65-rated enclosure
NEW Ergonomic design with durable rubberized grip
Braided stainless steel cable and heavy-duty strain reliefs for demanding applications (PosiTector UTG CX only)
Shock-absorbing, protective rubber holster for added impact resistance
Two year warranty on gage body AND probe

Accurate

Precision ultrasonic transducers provide fast, accurate readings
Certificate of Calibration (Long Form) showing traceability to NIST or PTB included
Built-in temperature compensation ensures measurement accuracy
Conforms to national and international standards including ASTM E797

Versatile

PosiTector body accepts all PosiTector probes easily converting from an ultrasonic wall thickness gage to a coating thickness gage, surface profile gage, dew point meter, soluble salt tester, or hardness tester
NEW Auto rotating display with Flip Lock
Single or two point adjustment
Inch/mm switchable
Selectable display languages
Extended cables available (up to 20 m/60 ft) for underwater or remote measuring

Powerful

Min Scan modetake continuous readings and record min/max thicknessesideal for quick inspection over a large area
Statistics Mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
NEW Screen Capturesave 100 screen images for record keeping and review
NEW Instant-on feature quickly powers up the gage if recently powered down
NEW Up to 30% longer battery life
USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included.
PosiSoft USB Drivestored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
Includes PosiSoft suite of software for reviewing and reporting data
Every stored measurement is date and time stamped

line
Standard Models Features
line

Includes ALL features as shown above plus:
