Dakota Ultrasonics PZX1-DL (PZX-7DL) Data-Logging Precision Ultrasonic Wall Thickness Gauge Z-308-0001 / Z-308-0002 with T-402-5507 Probe with Built-in Datalogger



Price: $ 2,450.00

Dakota Ultrasonics PZX1-DL (PZX-7DL) Data-Logging Precision Z-308-0001 / Z-308-0002 with T-402-5507
Resolution:.0001" (0.001 mm)
Calibrate to known thickness or Select Material from 8 Presets
5-Year Warranty, Made in USA
Datalogging:Built-in datalogging for 10,000 data values, USB Output

Range with Standard Delay Line Transducer
0.0060" - 1.000" / 0.150 - 25.40 mm

Range with Contact Transducers
up to 36.00" / 915.0 mm

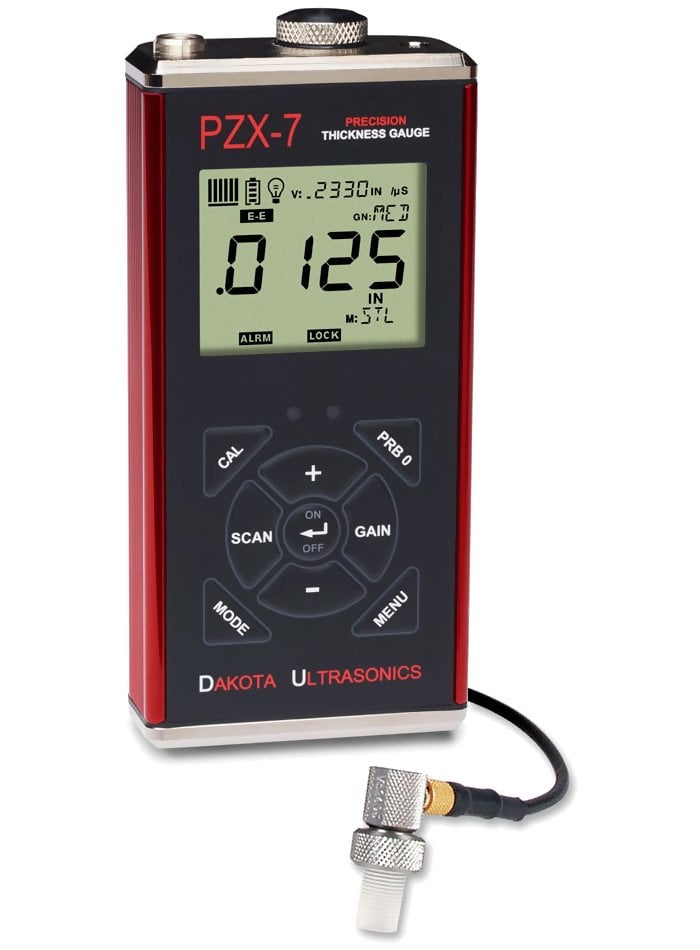

The Dakota Ultrasonics PZX1-DL (PZX-7DL) Data-Logging Precision Ultrasonic Wall Thickness Gauge Z-308-0001 / Z-308-0002 with T-402-5507 Probe with Built-in Datalogger is a precision ultrasonic wall thickness gauge designed for high-resolution measurements on thin-wall metal and plastics. It is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments.

The built-in datalogger has a capacity of 10,000 data values stored in up to 40 batches with 250 values/batch which is transferred via the USB port using the supplied cable. The PZX-7DL does not require any software, it will be shown as a drive when connected to a PC allowing convenient drag-n-drop into your program of choice. Data is saved in a comma deliminated file format (.csv) which makes it compatible with all programs and software.

The PZX-7DL has measuring range in steel from 0.0060 to 1.0000 inch, (0.15 to 25.40 mm). Using a single element delay tip transducer, the gauges will measure thin materials and automatically remove any coatings in Echo-Echo Mode (E-E) as well as automatically switch to Interface Echo Mode (I-E)when measuring thicker materials, For measurement of plastics, the user would select Plastic Mode (PLAS) and use the option Graphite Delay Line Tip (p/n X-633-0000).

Additional Measuring Modes include Differential (DIFF) where a user sets a "nominal value" and the gauge displays the difference between then nominal and actual wall thickness, Alarm (user-set Hi/Low Limits) trigger Hi/Lo LED's when the measured values are out of tolerance and Velocity Mode

The PZX-7DL can also be used with single element contact transducers for wall thickness measurements up to 36 inches (923 mm).


line

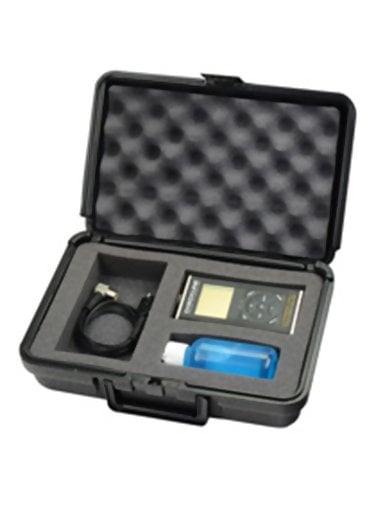

Kit Contents
line

  • Dakota Ultrasonics PZX1-DL (PZX-7DL) Data-Logging Precision Ultrasonic Wall Thickness Gauge Z-308-0001 / Z-308-0002 with T-402-5507 Probe with Built-in Datalogger With T-402-5507 Probe With Built-In Datalogger
  • 4 oz. bottle of coupling fluid
  • USB-C Data transfer cable
  • 2 AA batteries
  • NIST Traceable Calibration Certificate
  • Carrying case
  • Instruction Manual


line
Features
line

  • Large, backlit LCD display retains last reading
  • Resolution of 0.0001 inch (0.001 mm) with Selectable units of inch or mm
  • Includes NIST Traceable Calibration Certificate
  • IP 65 Rated for protection even in the toughest field conditions
  • 5 Year Warranty, CE-Certified and Made in USA
  • Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed
  • Adjustable GAIN (AGC) in 5 steps to fine tune the gauge for use on challenging materials or applications
  • Can be used with both Single Element Delay Line and contact transducers (5 to 20MHz)
  • LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero and units
  • Operates on two (2) AA Batteries - 45 hours continuous operation
  • Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity
  • Built-in datalogging for 10,000 data values stored in up to 40 batches with 250 values/batch with USB Output
  • Powered by: 120MHz FPGA timing & 100 volt spike pulser
  • Measure Modes: Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS)
  • Optional serial RS-232 or Bluetooth output
  • Additional Modes Include Differential (from user-entered "nominal value"), Alarm (user-set Hi/Low Limits) and Velocity Mode


line
Specifications
line

Range with Standard Probe0.0060-1.0000" (0.15-25.40 mm) with standard delay line transducer in steel
Resolution0.0001" (0.001 mm) . 0.001" (0.01 mm), user-selected units and resolution
DisplayMulti-function 7 segment 4.5 digit liquid crystal display with Back-light
Velocity Range0.0120 to .7300 in/s (305 to 18,542 m/sec)
Display BacklightBacklight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
Output OptionalRS-232 and Bluetooth
Cable4 ft. (1.2 m) with Microdot/Lemo00 connector.
OutputUSB single value only (no internal memory)TI-007DLXfor a model with build-in memory for 40,000 values USB output
Operating Temperature-22 to 167F (-30 to 75C)
Housing ProtectionIP65
Battery LifeTypically operates for 35 hours on alkaline and 18 hours on NiCad
Weight11 ounces (308 grams)
Dimensions2.5 x 5.17 x 1.25"
(64 x 131 x 32 mm)
WarrantyGauge: 5 Years
Probes: 90 Days
Total Measuring Range
(Steel)
0.006 - 36.000 inches
0.15 - 924 mm
(depends on material and transducer/probe type)
Measuring ModesPulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS), Differential, Alarm, Scan and Velocity (VX)
GainAutomatic time dependent gain (TDG) with manual override
Probe (Standard)1/4" diameter, 15 MHz delay line transducer with cable (p/n T-402-5507)
Probes (optional)Various Single Element Delay Line and Contact Transducers (5 to 20MHz)
Display Update Rate10 Hz (10 updates/sec)
Battery Type2x AA 1.5V alkaline, 1.2V NiCad, or 1.5V lithium AA cells (rechargeable batteries can be used)
HousingExtruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
CertificationsNIST Traceable and MIL-STD-45662A
KeypadSealed membrane that is resistant to both water and petroleum products
Seven or eight tactile-feedback keys
Pulse Repetition Frequency (PRF)200 Hz (200 pulses/sec)
To Lock SettingsWith gauge powered off, press and hold the "+" key while powering on the gauge
The LOCK icon will be illuminated on the Display
To unLock SettingsWith gauge powered off, press and hold the "-" key while powering on the gauge
The LOCK icon will turn off


line
Delay Line Tips for PZX-7DL
line

P/NDescriptionStandard / OptionalImage
X-231-00001/4" x 3/8" for all metals (Short)Standard
X-241-00001/4" x 1/2" for all metals (Long)Standard
X-633-00001/4" x 3/8" Graphite Tip for thin plastics (Graphite Short)OPTIONAL


line
Related Products
line

NIST-Traceable Steel Test Block
3 Sizes Available

  • Precision Machined and Finished
  • Includes NIST Report and Test Data

line

DataComm
Software for Thickness Gauges
ABQ

line

TICC-M
Protective Holder for Ultrasonic Gauges

  • Constructed from heavy duty Cordura Nylon
  • Built-in belt loop

line

Uncertified Steel Test Block
For Ultrasonic Gauges
  • For convenient confirmation of thickness gauge calibration

line

TI-CMX-UW-50
50 Foot Underwater Probe / Cable Assembly
  • 50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors

line

V-Block
Transducer Holder

  • The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas


line
Downloads
line

Dakota Ultrasonics Single Element Precision Thickness Gauges Transducers Accessories - Instruction Manual (NEW MODEL)
PZX-7DL Data-Logging Precision Ultrasonic Wall Thickness Gauge with USB Output - Data Sheet
PZX-7DL Data-Logging Precision Ultrasonic Wall Thickness Gauge with USB Output - Instruction Manual (OLD MODEL)
Dakota Ultrasonics Single Element Precision Thickness Gauges Transducers Accessories - List

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Dakota Ultrasonics PZX1-DL (PZX-7DL) Data-Logging Precision Ultrasonic Wall Thickness Gauge Z-308-0001 / Z-308-0002 with T-402-5507 Probe with Built-in Datalogger $2,450.00
Accessories Price
BATT-RC4AA-WC 4-pack AA Ni-MH Rechargeable Batteries & Charger Kit $35.00
X-231-0000 1/4" x 3/8" Length Delay Line $25.00
X-241-0000 1/4" Diameter x 1/2" Length Delay Line Tip $25.00
X-633-0000 1/4" Diameter x 3/8" Length Graphite Tip Delay Line $50.00
T-402-5507 1/4" diameter, 15 MHz delay line transducer with cable, 1/2" and 3/8" length delay line tips $615.00
T-4023-2855 0.250", 5 Mhz, Side-in, Microdot Non-Magnetic Single Element Contact Transducer $375.00
T-4043-2855 0.5", 5 Mhz, Side-in, Microdot Non-Magnetic Single Element Contact Transducer $375.00
N-104-0020 LEMO 00 - Microdot Single Probe Transducer Cable, 4 foot length $80.00
A-302-6002 Protective Rubber Boot for TI / ZX Series Small Body Ultrasonic Thickness Gauges $95.00
