Wall Thickness Gages | Buy DeFelsko UTGCLF1-G PosiTector UTG CLF1 Standard Ultrasonic Thickness Gage With PRBUTGCLF-C Low Frequency Cabled Probe Type 2.25 MHz Dual Element, Range: 0.080" to 5.000"

Measuring Range: 0.080" to 5.000" - 2.00 to 125.00mm

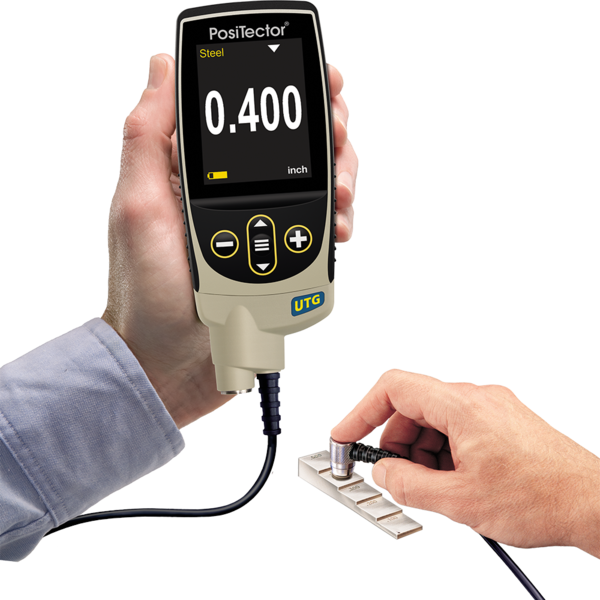

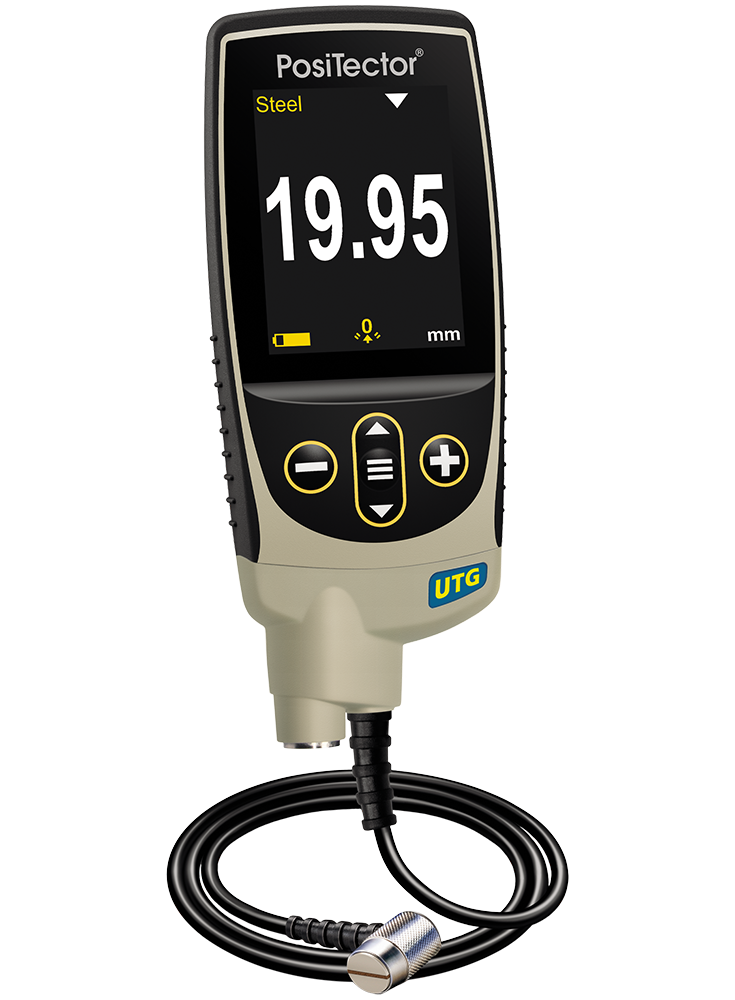

The DeFelsko UTGCLF1-G PosiTector UTG CLF1 Standard Ultrasonic Thickness Gage with Low Frequency Probe measures the wall thickness of materials such as steel, plastic and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes or any structure where access is limited to one side. Multiple echo (UTG M) Thru-Paint models measure the metal thickness of a painted structure without having to remove the coating.

line

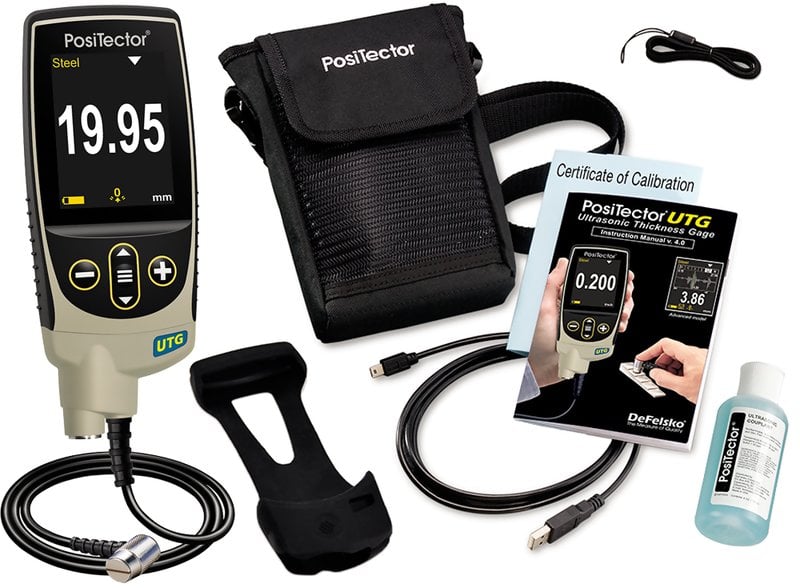

Kit Contents
line

The DeFelsko PosiTector UTG CLF1 Standard Ultrasonic Thickness Gage Kit includes everything needed for testing:

PosiTector Standard Gage Body BDYSTD-G
PosiTector UTG CLF Probe PRBUTGCLF
Couplant (ultrasonic gel)
Precision plastic shims
Protective rubber holster with belt clip
Wrist strap
3 AAA alkaline batteries
Protective lens shield
PosiSoft Software and USB cable
Long Form Certificate of Calibration traceable to NIST
Nylon carrying case with shoulder strap and instructions
Two (2) year warranty

line
Features
line

Simple

Large, easy-to-read, graphics LCD
Pre-programmed velocities - Simply select from a list of common materials or enter your own with ease
Smart Couple - Eliminates inadvertent decoupling - ideal for analyzing large areas using multiple passes
Enhanced one-handed menu navigation
Flashing display ideal in a noisy environment
RESET feature instantly restores factory settings

Durable

Braided stainless steel cable and heavy-duty strain reliefs for demanding applications (PosiTector UTG CX only)
Impact resistant lens
Wear-resistant probe tip
Shock-absorbing, protective rubber holster with belt clip
Two year warranty on gage body AND probe

Accurate

Precision ultrasonic transducers provide fast, accurate readings
Certificate of Calibration (Long Form) showing traceability to NIST included
Conforms to national and international standards including ASTM E797
Built-in temperature compensation ensures measurement accuracy

Versatile

High contrast LCD with backlit display
Single or two point adjustment
Inch/mm switchable
Selectable display languages
Flip display enables right-side-up viewing
Uses alkaline or rechargeable batteries (built-in charger)

Powerful

Min Scan - measurement rate of up to 20 readings per second with onscreen min and max for quick inspection over a large area
Statistics Mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
Sealed USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included
Software Updates via web keep your gage current
Screen Capture - record and save image into USB flash memory for record keeping and review
Software Solutions for viewing, analyzing & reporting data
Every stored measurement is date and time stamped

line
Standard Model Features
line

Standard Models, includes ALL features as shown on left plus
