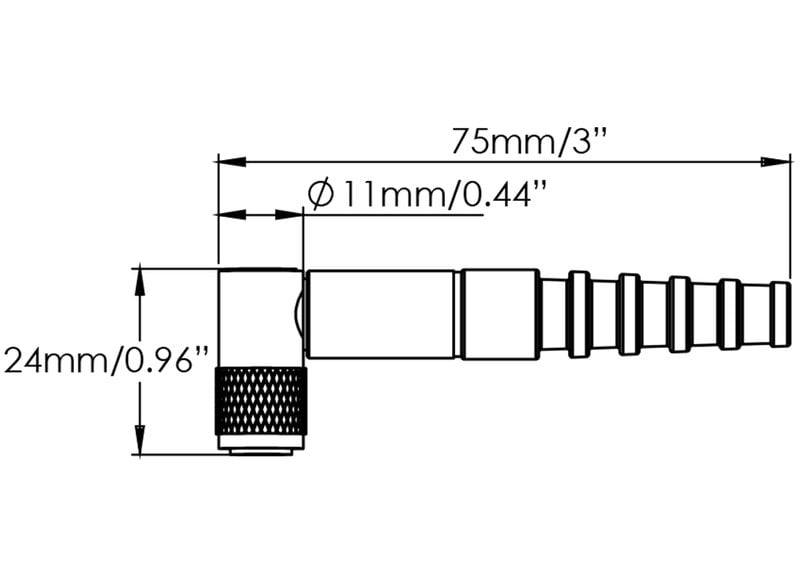

DeFelsko UTGP1-G PosiTector UTG P1 Standard Ultrasonic Thickness Gage With PRBUTGP-C Precision Cabled Probe Type 15 MHz Single Element Delay Line, Range: 0.008" to 0.475"

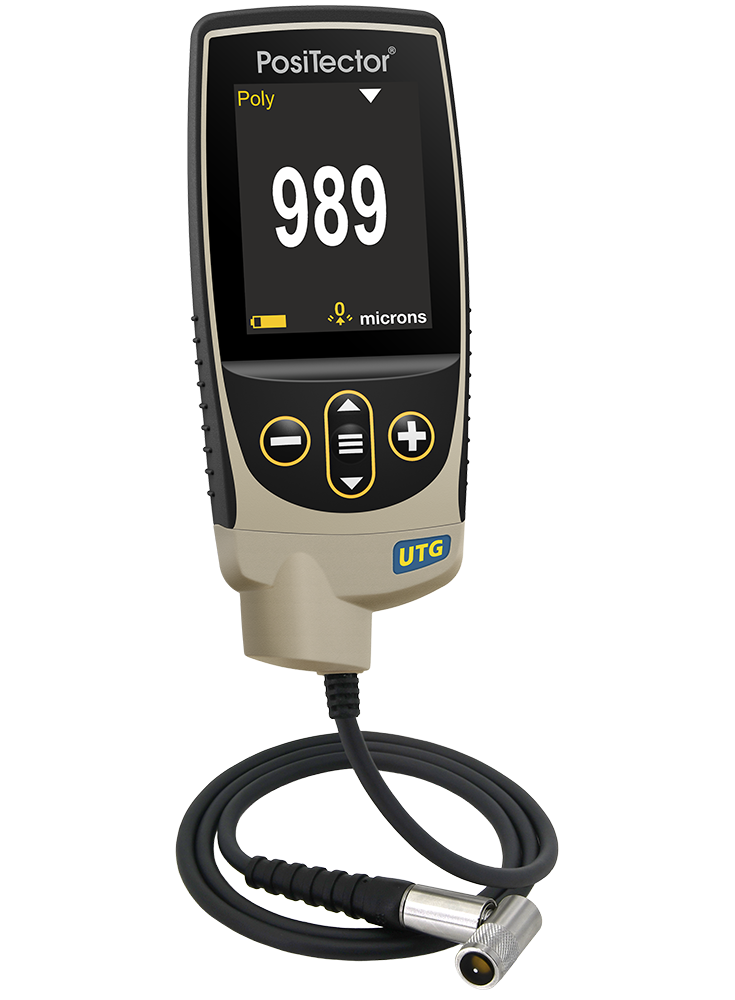

DeFelsko PosiTector UTG P1 Standard Ultrasonic Thickness Gage with Precision Probe, 15 MHz Single Element DelayLine

---

Steel Measuring Range: 0.008" to 0.475" - 0.2 to 12.0 mm | Plastic Measuring Range: 0.005" to 0.175" - 0.125 to 4.500 mm

---

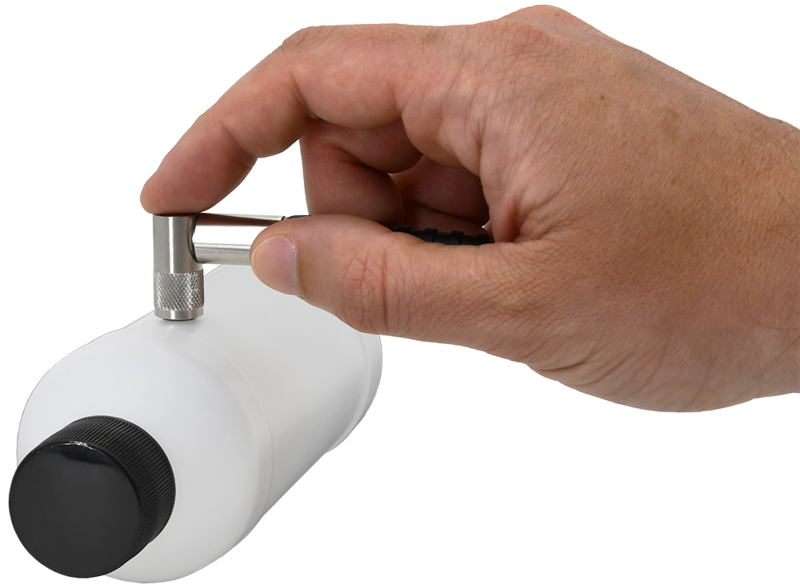

The DeFelsko PosiTector UTG P1 Standard Ultrasonic Thickness Gage with Precision Probe measures the wall thickness of materials such as steel, plastic and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes or any structure where access is limited to one side. Multiple echo Thru-Paint models (PosiTector UTG M) Thru-Paint models measure the metal thickness of a painted structure without having to remove the coating.

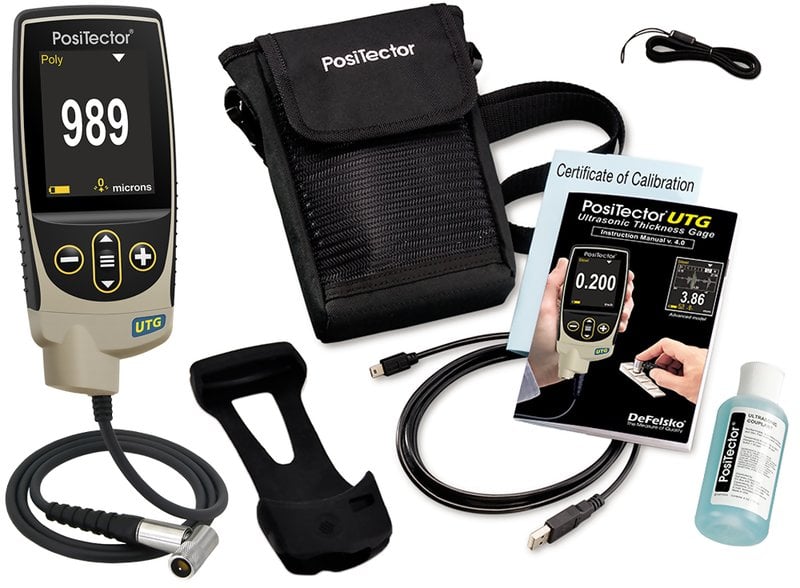

Kit Contents

---

The DeFelsko PosiTector UTG P1 Standard Ultrasonic Thickness Gage Kit includes everything needed for testing::

Features

---

Simple

• Pre-programmed velocitiessimply select from a list of common materials or enter your own with ease
• Smart Couple mode eliminates unintentional decouplingensure continuous measurements while measuring on scaled or pitted surfacesideal for analyzing large areas using multiple passes
• NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
• NEW On-gage help explains menu items at the touch of a button
• RESET feature instantly restores factory settings

Durable

• NEW Weatherproof, dustproof, and water-resistantIP65-rated enclosure
• NEW Ergonomic design with durable rubberized grip
• Braided stainless steel cable and heavy-duty strain reliefs for demanding applications (PosiTector UTG CX only)
• Shock-absorbing, protective rubber holster for added impact resistance
• Two year warranty on gage body AND probe

Accurate

• Precision ultrasonic transducers provide fast, accurate readings
• Certificate of Calibration (Long Form) showing traceability to NIST or PTB included
• Built-in temperature compensation ensures measurement accuracy
• Conforms to national and international standards including ASTM E797

Versatile

• PosiTector body accepts all PosiTector probes easily converting from an ultrasonic wall thickness gage to a coating thickness gage, surface profile gage, dew point meter, soluble salt tester, or hardness tester
• NEW Auto rotating display with Flip Lock
• Single or two point adjustment
• Inch/mm switchable
• Selectable display languages
• Extended cables available (up to 20 m/60 ft) for underwater or remote measuring

Powerful

• Min Scan modetake continuous readings and record min/max thicknessesideal for quick inspection over a large area
• Statistics Mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
• NEW Screen Capturesave 100 screen images for record keeping and review
• NEW Instant-on feature quickly powers up the gage if recently powered down
• NEW Up to 30% longer battery life
• USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included.
• PosiSoft USB Drivestored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
• Includes PosiSoft suite of software for reviewing and reporting data
• Every stored measurement is date and time stamped

Standard Models Features

---

Includes ALL features as shown above plus:

• NEW Storage of 1,000 readings per probe-stored readings can be viewed or downloaded
