DeFelsko KITUT3 PosiTector Advanced Ultrasonic Inspection Kit with Advanced Gauge Body, Corrosion Probe PRBUTGC, Multiple-Echo Probe PRBUTGM, Certified Step Block STDB1 Inch

The DeFelsko KITUT3 PosiTector Advanced Ultrasonic Inspection Kit is Wall Thickness and Corrosion Assessment. The DeFelsko KITUT3 PosiTector Advanced Ultrasonic Inspection Kit include both the PosiTector UTG C Corrosion probe and the PosiTector UTG M Multiple-Echo probe, along with a choice of Advanced Gage Body and a Certified Step BlockInch. This combination provides a complete solution for measuring wall thickness on both heavily corroded and coated structures.

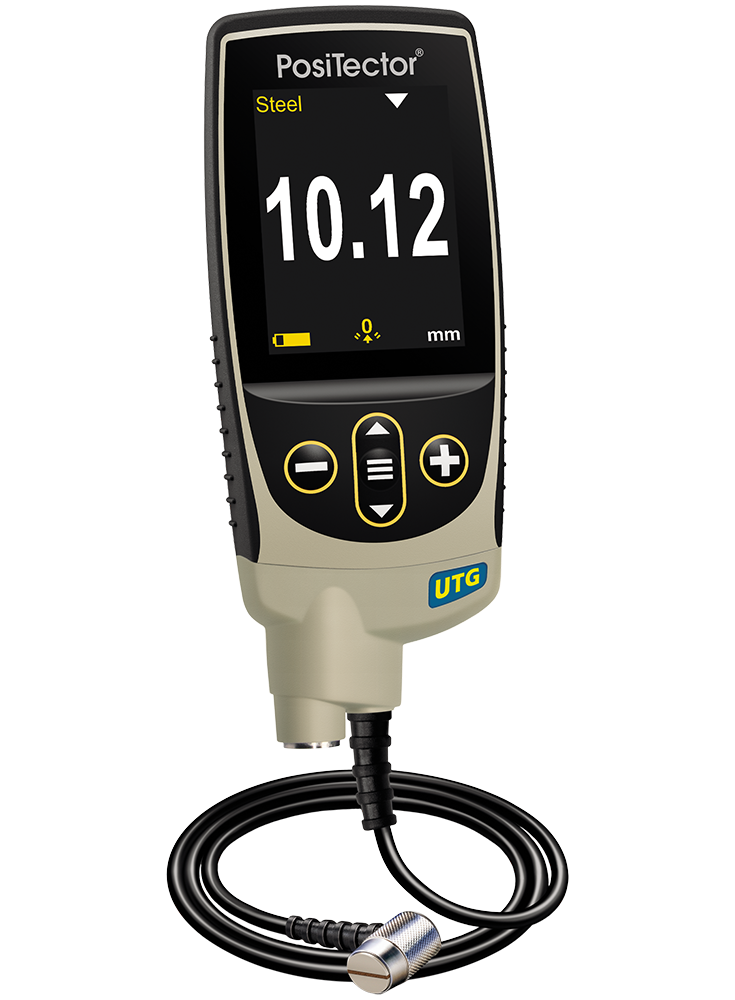

The DeFelsko PosiTector UTG C (Corrosion) probe uses a dual element transducer to measure metal thickness through heavy corrosion or pitting, while the PosiTector UTG M (Multiple-Echo) probe uses a single element transducer to measure the thickness of new or lightly corroded structures automatically ignoring protective coatings.

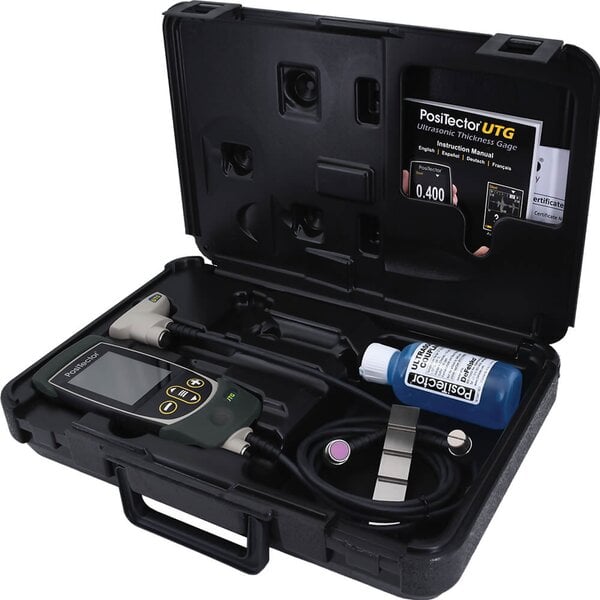

Kit Contents

• PosiTector Advanced Gage Body BDYADV
• PosiTector UTG C Probe PRBUTGC
• PosiTector UTG M Probe PRBUTGM
• DeFelsko STDB1 Certified Step Block - Inch
• Couplant (Ultrasonic Gel)
• PosiSoft Software and USB Cable
• Protectiv Carrying Case and Instructions

Click image to enlarge

Features

Simple

• Pre-programmed velocitiessimply select from a list of common materials or enter your own with ease
• Smart Couple mode eliminates unintentional decouplingensure continuous measurements while measuring on scaled or pitted surfacesideal for analyzing large areas using multiple passes
• NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
• NEW On-gage help explains menu items at the touch of a button
• RESET feature instantly restores factory settings

Durable

• NEW Weatherproof, dustproof, and water-resistantIP65-rated enclosure
• NEW Ergonomic design with durable rubberized grip
• Shock-absorbing, protective rubber holster for added impact resistance

Accurate

• Precision ultrasonic transducers provide fast, accurate readings
• Certificate of Calibration (Long Form) showing traceability to NIST or PTB included
• Built-in temperature compensation ensures measurement accuracy
• Conforms to national and international standards including ASTM E797

Versatile

• PosiTector body accepts all PosiTector probes easily converting from an ultrasonic wall thickness gage to a coating thickness gage, surface profile gage, dew point meter, soluble salt tester, or hardness tester
• NEW Auto rotating display with Flip Lock
• Single or two point adjustment
• Inch/mm switchable
• Selectable display languages
• Extended cables available (up to 20 m/60 ft) for underwater or remote measuring

Powerful

• Min Scan modetake continuous readings and record min/max thicknessesideal for quick inspection over a large area
• Statistics Mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
• NEW Screen Capturesave 100 screen images for record keeping and review
• NEW Instant-on feature quickly powers up the gage if recently powered down
• NEW Up to 30% longer battery life
• USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included.
• PosiSoft USB Drivestored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
• Includes PosiSoft suite of software for reviewing and reporting data
• Every stored measurement is date and time stampe

Advanced

• NEW Storage of 250,000 readings in up to 1,000 batches and sub-batches
• Live graphing of measurement data
• NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
• A-Scan with adjustable Gain and screen capture. UTG M and UTG P probes include dual cursors to measure the distance between echoes
• B-Scandisplays a cross sectional profile of the test material
• WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
• Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
• Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols

Probes

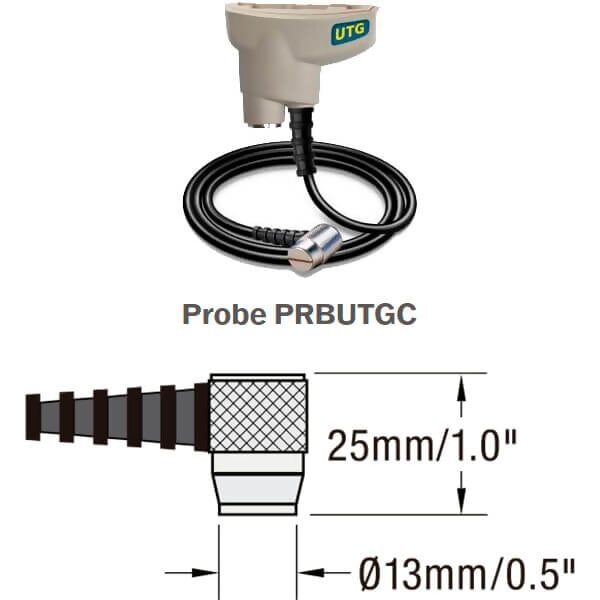

• DeFelsko PRBUTGC Probe measures the wall thickness of materials such as steel, plastic, and more
• DeFelsko PRBUTGC ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side
• DeFelsko PRBUTGC 5 MHz dual element transducer with durable PEEK probe tip
• DeFelsko PRBUTGC automatic V-Path compensation for thin materials

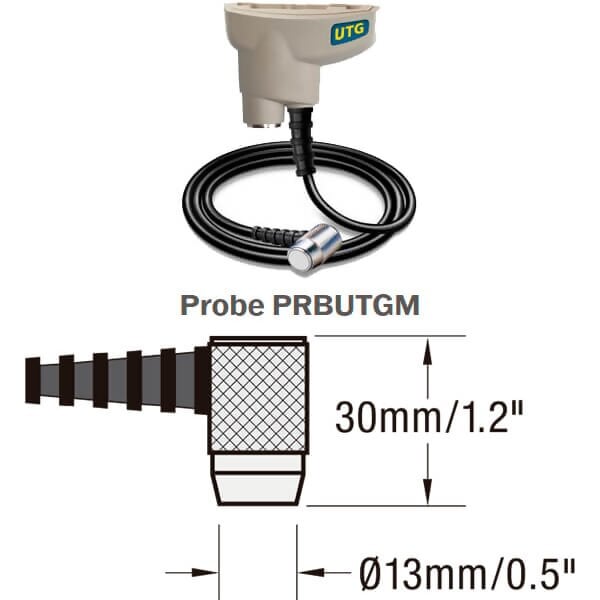

• DeFelsko PRBUTGM Probe features Thru-Paint capability to quickly and accurately measure the metal thickness of a painted structure without having to remove the coating
• DeFelsko PRBUTGM also ideal for measuring applications requiring a more durable wear face
• DeFelsko PRBUTGM 5 MHz contact probe with wear resistant alumina probe tip
• DeFelsko PRBUTGM Multiple-Echo technique averages 3 or more echoes for accurate and reliable readings

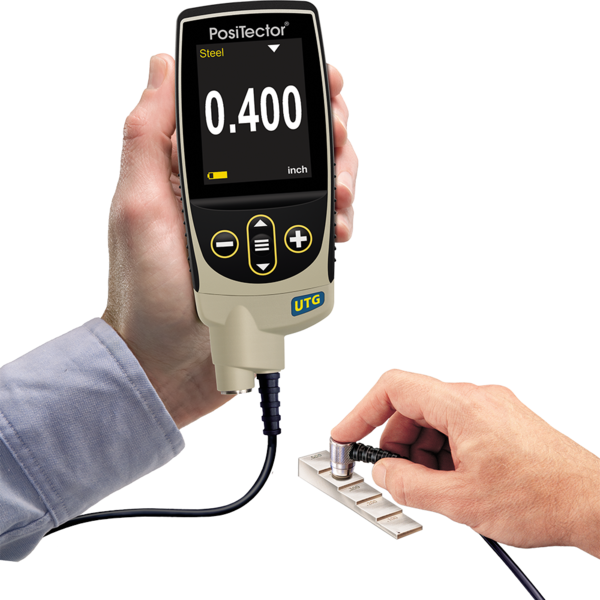

Certified Step Blocks

• Ideal for checking calibration and operation of ultrasonic thickness gages and are an important component in fulfilling both ISO and in-house quality control requirements.
• Made from 1018 steel and nickel-plated for corrosion and wear resistance
• Long-form Certificate of Calibration and Material Test Report included
• STDB1 Certified Step BlockInch
  • 100, 200, 300, 400, and 500 mil steps
  • Accuracy: 1 mil
• STDB1M Certified Step BlockMetric
  • 2.5, 5, 7.5, 10, and 12.5 mm steps
  • Accuracy: 0.025 mm

Specifications

PosiSoft Suite of Software

Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More

• PosiSoft Desktop
• PosiSoft.net
• PosiTector App
• PosiSoft USB

Click image to enlarge

Related Products

DeFelsko Certified Step Blocks

Ideal for checking calibration and operation of ultrasonic thickness gages and are an important component in fulfilling both ISO and in-house quality control requirements.

Click image to enlarge

DeFelsko Ultrasonic Couplant

Every PosiTector 200 and PosiTector UTG ships with (1) bottle of Ultrasonic couplant.Additional 4oz. bottles are available. (sold in case of 12 or twin packs).

Click image to enlarge
