Checkline TI-25MXT Through-Paint Ultrasonic Thickness Gauge Kit with T-102-2700 Probe



Price: $ 1,775.00

Checkline TI-25MXT Thru-Paint Ultrasonic Wall Thickness Gauge
Includes NIST-Traceable Calibration Certificate, CE-Certified
5-Year Warranty, Made in USA
Datalogging:Built-in datalogging for 10,000 data values, USB Output

Measuring Range on Steel(with standard T-102-2700 probe)
Pulse-Echo (PE) Mode(Pit & Flaw Detection) - 0.040 to 8.00 inches / 1.00 to 199.9mm
Echo-Echo (EE) Mode(Through Paint & Coatings) - 0.100 to 1.000 inch / 2.54 to 25.40 mm

Total Measuring Range(Probe Dependant)
Pulse-Echo (PE) Mode(Pit & Flaw Detection) - 0.025 to 36.000 inches / 0.63 to 914.4 mm
Echo-Echo (EE) Mode(Through Paint & Coatings) - 0.100 to 1.000 inch / 2.54 to 25.40 mm

The Checkline TI-25MXT Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion ofallmetals, ceramics, glass and most rigid plastics from one side. When operated in E-E Mode (Thru-Paint Mode), the coating is eliminated from the reading and the gauge will display only the thickness of the metal wall.

Checkline TI-25MXT Features include Automatic or Manual Probe Zero maximizing accuracy, 5-position Gain Adjustment to help located the correct backwall echo and to penetrate the walls on sound-attenuating materials such as cast metals and thick materials. It also features Differential mode, Hi-Low Alarms with audible and visual indicators and Scan mode that captures the minimum thickness at 100 measurements per second (100 Hz). It also includes a special Velocity Mode to measure in terms of velocity for nodularity testing.

The gauge and probe have a protection rating of IP67, is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions. The TI-25MXT is covered by a 5-Year Limited Warranty, CE-certified and is proudly Made in the USA.

The TI-25MXT can be used with any of the following hi-damped dual-element transducers specifically designed for use with E-E Thru-Paint Mode.

T-101-2700, 3/16" Diameter, 5.0 MHz Hi-damped transducer for thru paint measurement
T-101-3700, 3/16" Diameter, 7.5 MHz Hi-damped transducer for thru paint measurement
T-102-2700, 1/4" Diameter, 5.0 MHz Hi-Damped transducer for thru paint measurement - Standard Probe
T-102-3700, 1/4" Diameter, 7.5 MHz Hi-Damped Transducer for thru paint measurement
T-104-2700, 1/2" Diameter, 5.0 MHz Hi-Damped Transducer for thru paint measurement
T-104-9700, 1/2" diameter, 3.5 MHz Hi-Damped transducer for thru paint measurement


line

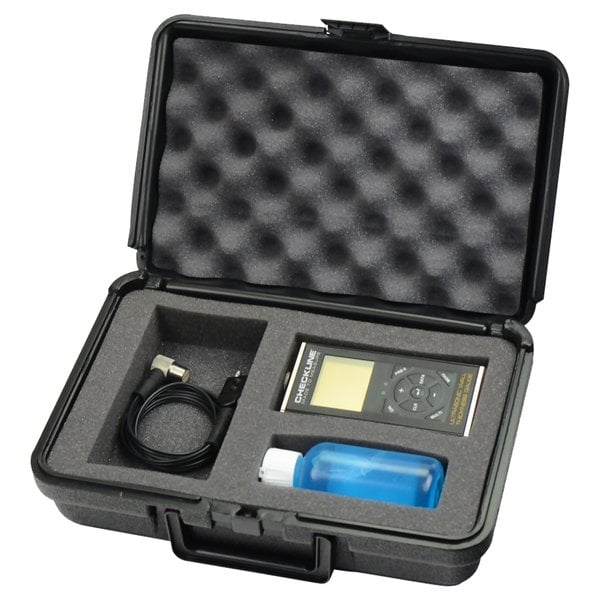

Kit Contents
line

  • Checkline TI-25MXT Thru-Paint Ultrasonic Wall Thickness Gauge
  • Probe
  • 4 oz. bottle of coupling fluid
  • 2 AA batteries
  • NIST-Traceable Calibration Certificate
  • Carrying case
  • Instruction Manual


line
Features
line

  • Includes NIST Traceable Calibration Certificate
  • Includes both Pulse-Echo Mode (Pit & Flaw Detection) and Echo-Echo Mode (Through Paint & Coatings Mode)
  • Using the standard probe T-102-2700, the gauge will read thru 0.040" coating thickness (1 mm)
  • Using one of the optional probes T-104-2700, the gauge will read thru 0.075" coating thickness (1.9 mm)
  • Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity
  • 2-Point Calibration to optimize linearity over a wide measurement range, automatically calculates the optimal acoustic velocity
  • Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed
  • Adjustable GAIN in 5 steps to fine tune the gauge for use on challenging materials or applications
  • Differential mode, Hi-Low Alarms with audible and visual indicators
  • User-selected Manual or Auto Zero of Transducer
  • The extruded aluminum housing is impact-resistant and environmentally sealed (IP 65)
    to provide trouble-free operation under the toughest field conditions
  • Special-purpose probes are offered for a variety of applications (1 to 10 MHz)
  • Selectable Backlight ON/OFF/AUTO
  • Resolution of 0.001 inch (0.01 mm)
  • 5 Year Warranty, CE-Certified and Made in USA


line
Specifications
line

Range in SteelPulse-Echo Mode(Pit & Flaw Detection) measures from 0.025 to 19.999 inches
(0.63 to 500 millimeters)
Echo-Echo Mode(Through Paint & Coatings) measures from 0.100 to 1.000 inch
(2.54 to 25.40 millimeters)
(range depends upon probe selected) - five probes to choose from
Resolution0.001 inch (0.01 mm)
Velocity Range0.0120 to .7300 in/s. 305 to 18,542 meters/sec
Probe (Standard)1/4", 5 MHz Hi-Damp Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-2700
Probes (optional)1 to 10 MHz, 3/16" up to 1 inch (custom probes available)
Probe WearfacePEEK (Polyethylethylkytone)
Cable1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors
LCD DisplayMulti-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes
Display BacklightBacklight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
Display Update Rate10 Hz (10 updates/sec)
Temp. LimitsAmbient: -30 to 75 C (-22 to 167 F)
Material: -20 to 100 C (0 to 200 F)
High temperature probes available
Battery Type2x AA batteries (rechargeable batteries can be used)
Battery Life45 hours continuous use
Weight308 grams (11 ounces)
Dimensions63.5 x 131.3 x 31.5 mm (2.5" x 5.17" x 1.25")
AccessoriesProbe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
HousingExtruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
Housing RatingIP65
CertificationsNIST Traceable and MIL-STD-45662A
KeypadSealed membrane that is resistant to both water and petroleum products
Seven or eight tactile-feedback keys
Pulse Repetition Frequency (PRF)200 Hz (200 pulses/sec)
To Lock SettingsWith gauge powered off, press and hold the "+" key while powering on the gauge
The LOCK icon will be illuminated on the Display
To unLock SettingsWith gauge powered off, press and hold the "-" key while powering on the gauge
The LOCK icon will turn off
GAIN AdjustmentAdjustable GAIN 5-position (VLOW, LOW, MED, HIGH, VHI), in 3dB steps, 40-52dB
Time Dependent Gain (TDG)Used in both pulse-echo (P-E) and Echo-Echo (E-E) modes depending on transducer and frequency selected
Measuring ModePulse-Echo (P-E), Echo-Echo (E-E, Thru-Paint Mode), Scan, Differential, Alarm and VX-velocity
Pulser150 volt square wave pulser
WarrantyGauge: 5 Years
Probes: 90 Days


line
Measuring Limits
line

Minimum Radius for Convex Surfaces0.350" (8.89 mm)
Minimum Radius for Concave Surfaces3" (76.2 mm)
Minimum Headroom1" (25.0 mm)
Minimum Sample Diameter0.150" (3.8 mm)
Minimum Substrate Thickness - Fna
Minimum Substrate Thickness - NFena


line
Related Products
line

TI-25-UW-50
50 Foot Underwater Probe / Cable Assembly

  • 50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors
related

line

V-Block
Ultrasonic Transducer Holder

related


line
Downloads
line

Checkline TI-25MXT Thru-Paint Ultrasonic Wall Thickness Gauge - Data Sheet
Checkline TI-25MXT Thru-Paint Ultrasonic Wall Thickness Gauge - Instruction Manual

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Checkline TI-25MXT Through-Paint Ultrasonic Thickness Gauge Kit with T-102-2700 Probe $1,775.00
Accessories Price
T-102-3700 1/4" diameter, 7.5 MHz dual element transducer, Hi-Damped, Side in, Potted $305.00
V-Block Transducer Holder (For 3/16" & 1/4" Transducers only), F-000-7001 $175.00
T-101-2700 3/16" Diameter, 5.0 MHz Hi-damped transducer for thru paint measurement, Side In, Potted $325.00
BATT-RC4AA-WC 4-pack AA Ni-MH Rechargeable Batteries & Charger Kit $35.00
TI-25-UW-50 Wall Thickness Gauges 50 Foot Underwater Probe / Cable Assembly $650.00
Rex 14-1353 V-Block for O-rings and Small Samples $40.00
Rex 14-1352 V-Block Base Plate for O-rings and Small Samples $45.00
T-102-2700 1/4" diameter, 5.0 MHz Hi-Damped transducer for thru paint measurement, Side In, Potted $305.00
A-302-6002 Protective Rubber Boot for TI / ZX Series Small Body Ultrasonic Thickness Gauges $80.00
CF12 Coupling Fluid - 12 oz / 354 ml $30.00
SB4 4 Step Steel Test Block, 0.1 / 0.2 / 0.4 / 0.6 inch - Uncertified, supplied in plastic case $125.00
SB6 6 Step Steel Test Block, 0.050 / 0.100 / 0.250 / 0.400 /0.600 / 0.800 Inch - Uncertified, supplied in wood case $200.00
SB5-SS 5 Step SS (304) Test Block, 0.100 / 0.200 / 0.300 / 0.400 / 0.500 Inch - Uncertified, supplied in plastic case $295.00
ISO-17025-SB ISO-17025 Calibration Certification for Step Test Blocks $165.00
SB-4H 4 Step Steel Calibration Test Block, 0.250, 0.500, 0.750, and 1.000 inch, with case $345.00
SB-4L 4 Step Steel Calibration Test Block, 0.040, 0.060, 0.080, and 0.100 inch, with case $345.00
SB-5L 5 Step Steel Calibration Test Block, 0.100, 0.200, 0.300, 0.0400, and 0.500 inch, with case $345.00
T-104-2700 1/2" Diameter, 5.0 MHz dual element transducer, Hi-Damped, Side in, Potted $320.00
T-104-9700 1/2" diameter, 3.5 MHz Hi-Damped transducer for thru paint measuremen $345.00
T-042-2700 1/4" diameter, 5.0 MHz dual element transducer Hi-Temp 650 F / 343 C, Hi-Damped for MMX Gauges $360.00
T-044-2700 1/2" diameter, 5.0 MHz dual element transducer, Hi-Temp (650 F/343 C) , Top in, Potted $380.00
