Checkline TI-CMXDL Data Logging Combination Coating & Wall Thickness Gauge kit with T-102-2900 probe



Price: $ 2,575.00

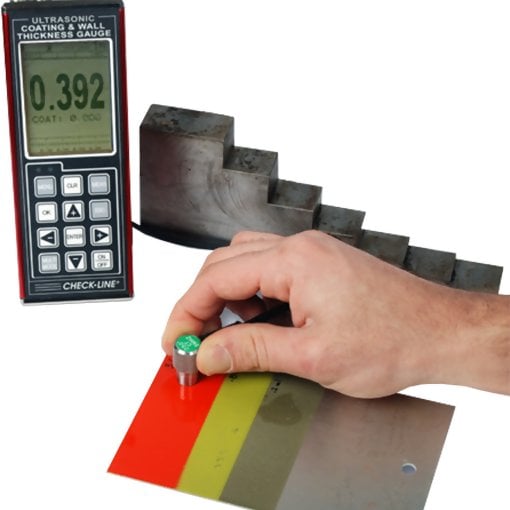

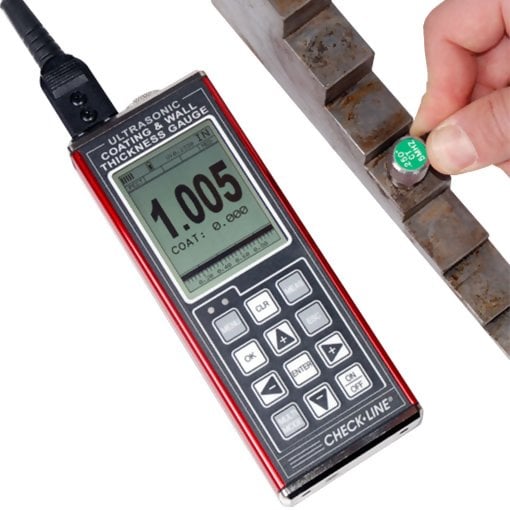

Checkline TI-CMXDL Data-Logging Ultrasonic Coating and Wall Thickness Gauge

Range: 0.025 - 9.999 inches- 0.63 - 254.0 mm


Resolution:.001" (0.01 mm)

Datalogging: YES

The Checkline TI-CMXDL Data-Logging Ultrasonic Coating & Wall Thickness Gauge measures both coating and wall thickness quickly and accurately - from only one side. In addition, when switched to Pulse-Echo mode, the Checkline TI-CMXDL Data-Logging Ultrasonic Coating & Wall Thickness Gauge automatically measures and eliminates the coating from the wall thickness measurement, enabling the user to locate the finest corrosion and pitting - without removing the coating.

Oversized graphic LCD is backlit and features easy to read fonts, graphics and display codes showing all critical settings including Velocity, Operating Mode, Alarms, Scan Mode and more. The backlight can be set to ON (always-on), OFF (always-off) or AUTO (automatically-on when measuring).

Five user-selected operating modes are included:

  • Coating On: Measures wall thickness using Pulse-Echo. It separately displays wall & coating thickness.
  • Coating Off: Measures wall thickness using Pulse-Echo. It displays wall thickness only.
  • Temperature Compensated: Measures wall thickness using Pulse-Echo and automatically adjusts calibration to compensate for changes in material temperature.
  • Thru-Coat: Measures wall thickness only using Echo-Echo. (coating is NOT included)
  • Coating Only: Measures coating thickness only.


line

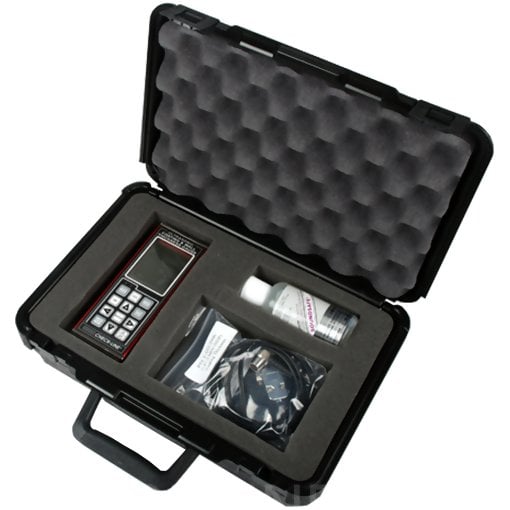

Kit Contents
line

  • Checkline TI-CMXDL Data-Logging Ultrasonic Coating and Wall Thickness Gauge
  • Probe
  • 4 oz. bottle of coupling fluid
  • 2 AA batteries
  • NIST Calibration Certificate
  • RS-232 cable
  • Data-transfer software
  • Operating manual
  • Carrying case


line
Features
line

Special

  • Built-in memory with RS-232 output for transferring data to a Printer or PC
  • Includes Datacomm Data Transfer & Analysis Software and RS-232 Cable, FREE
  • Data Files can be user-set for a "grid type" structure where data is formatted in Rows & Columns or a "sequential" file where all data appears in a single column
  • Each "grid type" File can be set for up to 999 rows by 52 columns
  • Each "sequential" File can be set for up to 512 rows by 1 column
  • Each File can be set for "data only" or as "data plus B-scan Graphic". Memory Capacity is over 225,000 data values or over 16,000 data values with B-scan

Features

  • Auto probe recognition with Auto Zero or Manual Zero.
  • Wide variety of dual-element probes can be used for nearly any application.
  • Bar graph with user-set start end values providing highest resolution around the target thickness value.
  • Differential Mode allows user to set a "target thickness value" and display will show the DIFFERENCE between actual and target thickness as a plus or minus value.
  • Includes NIST-Traceable Calibration.
  • CE Certified.
  • Adjustable Gain in 5 steps (VLow, Low, Med, Hi & VHi) in 2db increments providing a 8 db gain adjust range (4250 db).
  • 64 custom setups can be stored and retrieved for convenient use and labeled for easy identification
  • Display Hi/Lo Alarm Limits with audible and visual indicators.
  • 2 Year Warranty
  • Metal housing provides strong protection against harsh environments.
  • Measures Coatings up to 0.100"


lineSpecificationsline

Range in SteelPulse-Echo Mode Pit and Flaw detection measures from 0.025 9.999inches (0.63 to 254 millimeters)
Echo-Echo Mode Thru Paint & coatings measures from 0.100 4.000 inches (2.54 to 102 mm). Range will vary depending on the thickness of the coating.
Max Coating0.100"
Resolution.001 inches (0.01mm)
Velocity Range.0492 to .3936 in./ms
1250 to 9999 meters/sec
UnitsInch or mm
Measurement ModesPulse-Echo (corrosion mode)
Pulse-Echo Coating (Corrosion w/o coating)
Echo-Echo (thru-paint)
Temp Comp (auto adjust for material temp)
Coating Only (Ultrasonic Coating Gauge)
Transducer TypesDual Element (1 to 10 MHz).
OutputRS-232 for upload/download of setups
Memory capacityTI-CMX None
TI-CMXDL over 200,000 measurements
Power SourceThree 1.5V alkaline or 1.2V NiCad AA cells
Battery LifeTypically operates for 150 hours on alkaline and 100 hours on NiCad
Auto Power offAfter 5 minutes of non-use
Display1/8 in. VGA grayscale display 62 x 45.7mm
KeyboardMembrane switch with twelve tactile keys

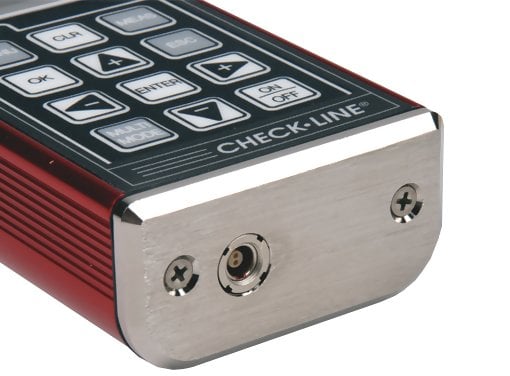

CaseExtruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Operating Temperature-14 to 140F (-10 to 60C)
Weight, net383 grams
Dimensions63.5 W x 165 H x 31.5 D mm
Warranty2 year limited
CertificationCE Approved, Factory calibration traceable to national standards


lineHigh Speed Scan Mode & B-Scan Modeline

Hi-Speed Scan Mode
  • Scan Mode measures 64 times per second, displaying the max and min reading measured during the scan interval. Sample rate is 200/sec when coating measurement is off

line

B-Scan Mode
  • The B-Scan displays a time based cross section view of test material of the contour of the blind, or underside of a pipe or tank application. the B-Scan view draws at a rate of seven seconds per screen from right to left


lineMeasuring Limitsline

Minimum Radius for Convex Surfaces0.350" (8.89 mm)
Minimum Radius for Concave Surfaces3" (76.2 mm)
Minimum Headroom1" (25.0 mm)
Minimum Sample Diameter0.150" (3.8 mm)
Minimum Substrate Thickness - Fna
Minimum Substrate Thickness - NFena


lineOptional Accessoriesline

NIST-Traceable Steel Test Block
3 Sizes Available

  • Precision Machined and Finished
  • Includes NIST Report and Test Data

line

Uncertified Steel Test Block
For Ultrasonic Gauges
  • For convenient confirmation of thickness gauge calibration

line

TICC-M
Protective Holder for Ultrasonic Gauges

  • Constructed from heavy duty Cordura Nylon
  • Built-in belt loop

line

V-Block
Transducer Holder

  • The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas


lineDownloadsline

Checkline TI-CMXDL Data-Logging Ultrasonic Coating & Wall Thickness Gauge - Certificate
Checkline TI-CMXDL Data-Logging Ultrasonic Coating & Wall Thickness Gauge - Software
Checkline TI-CMXDL Data-Logging Ultrasonic Coating & Wall Thickness Gauge - Instruction Manual

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Checkline TI-CMXDL Data Logging Combination Coating & Wall Thickness Gauge kit with T-102-2900 probe $2,575.00
Accessories Price
V-Block Transducer Holder (For 3/16" & 1/4" Transducers only), F-000-7001 $175.00
BATT-RC4AA-WC 4-pack AA Ni-MH Rechargeable Batteries & Charger Kit $35.00
T-212-2001 - 1/4" diameter, 5.0 MHz dual element transducer Hi-Temp (900 F/500 C) Top in, Microdot $470.00
TI-CMX-UW-50 1/2" 5 Mhz Hi Damp Coating Probe with 50 ft. underwater cable $705.00
CF12 Coupling Fluid - 12 oz / 354 ml $30.00
CF4-MAX Coupling Fluid - 4oz5 $65.00
A-149-6002 Protective Rubber Boot for TI / ZX Series Tall Body Ultrasonic Thickness Gauges $115.00
CF-4H-950F High Temp Coupling Fluid 4oz (600 - 780 F / 316 - 404 C) $150.00
T-101-3900 3/16" diamenter, 7.5MHz dual element transducer, Side in, Potted $360.00
T-101-2900 3/16" diameter, 5 MHz Coating Thickness transducer, Side In, Potted $360.00
T-102-2900 1/4" diameter, 5.00 MHz Coating Probe Standard Probe $360.00
T-104-2900 1/2" diameter, 5.0 MHz dual element transducer, coating thickness, Side in, Potted $375.00
T-104-9900 1/2" diameter, 3.5 MHz Coating Transducer $375.00
TICC-MVX Protective Holder for for Long Body Ultrasonic Gauges, F-149-0001 $90.00
T-102-2900-H 1/4" 5Mhz Coating Transducer for Material Temp up to 300 °F (150 °C) $370.00
