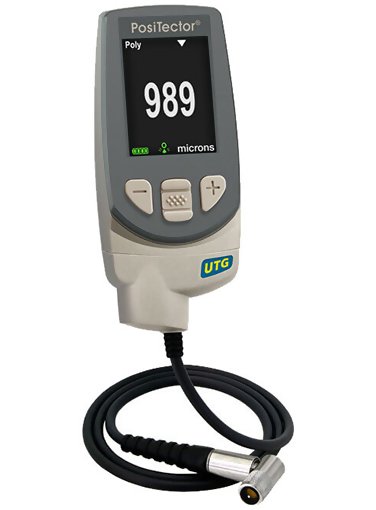

DeFelsko UTGP1-E PosiTector UTG P1 Standard Ultrasonic Thickness Gage with Precision Probe



Price: $ 1,275.00

DeFelsko UTGP1-E PosiTector UTG P1 Standard Ultrasonic Thickness Gage with Precision Probe
DeFelsko UTGP1 PosiTector UTG P1 Standard Ultrasonic Thickness Gage with Precision Probe, 15 MHz Single Element DelayLine
Steel Measuring Range: 0.008" to 0.475" - 0.2 to 12.0 mm | Plastic Measuring Range: 0.005" to 0.175" - 0.125 to 4.500 mm

The DeFelsko UTGP1-E PosiTector UTG P1 Standard Ultrasonic Thickness Gage with Precision Probe measures the wall thickness of materials such as steel, plastic and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes or any structure where access is limited to one side. Multiple echo (UTG M) Thru-Paint models measure the metal thickness of a painted structure without having to remove the coating.


line
Kit Contents
line

The DeFelsko PosiTector UTG P1 Standard Ultrasonic Thickness Gage Kit includes everything needed for testing::

  • PosiTector Standard Gage Body BDYSTD
  • PosiTector UTG P Probe PRBUTGP
  • Couplant (ultrasonic gel)
  • Precision plastic shims
  • Protective rubber holster with belt clip
  • Wrist strap
  • 3 AAA alkaline batteries
  • Protective lens shield
  • PosiSoft Software and USB cable
  • Long Form Certificate of Calibration traceable to NIST
  • Nylon carrying case with shoulder strap and instructions
  • Two (2) year warranty

  • line
    Photo Gallery
    line

    DeFelsko PosiTector UTG Ultrasonic Wall Thickness Gages Gallery 1 DeFelsko PosiTector UTG Ultrasonic Wall Thickness Gages Gallery 2 DeFelsko PosiTector UTG Ultrasonic Wall Thickness Gages Gallery 3 DeFelsko PosiTector UTG Ultrasonic Wall Thickness Gages Gallery 4 DeFelsko PosiTector UTG Ultrasonic Wall Thickness Gages Gallery 5 DeFelsko PosiTector UTG Ultrasonic Wall Thickness Gages Gallery 6


    line
    Features
    line

    Simple

    • Large, easy-to-read, graphics LCD
    • Pre-programmed velocities Simply select from a list of common materials or enter your own with ease
    • Smart Couple Eliminates inadvertent decoupling - ideal for analyzing large areas using multiple passes
    • Enhanced one-handed menu navigation
    • Flashing display ideal in a noisy environment
    • RESET feature instantly restores factory settings

    Durable

    • Braided stainless steel cable and heavy-duty strain reliefs for demanding applications (PosiTector UTG CX only)
    • Impact resistant lens
    • Wear-resistant probe tip
    • Shock-absorbing, protective rubber holster with belt clip
    • Two year warranty on gage body AND probe

    Accurate

    • Precision ultrasonic transducers provide fast, accurate readings
    • Certificate of Calibration (Long Form) showing traceability to NIST included
    • Conforms to national and international standards including ASTM E797
    • Built-in temperature compensation ensures measurement accuracy

    Versatile

    • High contrast LCD with backlit display
    • Single or two point adjustment
    • Inch/mm switchable
    • Selectable display languages
    • Flip display enables right-side-up viewing
    • Uses alkaline or rechargeable batteries (built-in charger)

    Powerful

    • Min Scan - measurement rate of up to 20 readings per second with onscreen min and max for quick inspection over a large area
    • Statistics Mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
    • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
    • Sealed USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included
    • Software Updates via web keep your gage current
    • Screen Capture record and save image into USB flash memory for record keeping and review
    • Software Solutions for viewing, analyzing & reporting data
    • Every stored measurement is date and time stamped


    line
    Standard Model Features
    line

    Standard Models Includes ALL features as shown on left plus

    • Storage of 250 readings per probe-stored readings can be viewed or downloaded


    line
    PosiSoft Suite of Software
    line

    Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More



    FAQ's - Frequently Asked Questions

    Click to View DeFelsko PosiTector UTGFrequently Asked Questions


    lineDownloadsline

    DeFelsko UTGP1-E PosiTector UTG P1 Standard Ultrasonic Thickness Gage - Ordering Guide
    DeFelsko UTGP1-E PosiTector UTG P1 Standard Ultrasonic Thickness Gage - Full Instruction Manual
    DeFelsko UTGP1-E PosiTector UTG P1 Standard Ultrasonic Thickness Gage - Literature
    DeFelsko UTGP1-E PosiTector UTG P1 Standard Ultrasonic Thickness Gage - Quick Guide
    DeFelsko PosiTector UTGUltrasonic Thickness Gage- Online Instruction Manual with Videos


    lineBuy Nowline


    Order Online
    Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
    Product Price
    DeFelsko UTGP1-E PosiTector UTG P1 Standard Ultrasonic Thickness Gage with Precision Probe $1,275.00
    Accessories Price
    UTGC Spare / Replacement PosiTector UTG Corrosion Probe Only PRBUTGC-C $715.00
    UTGM Spare / Replacement PosiTector UTG Multiple Echo Probe Only PRBUTGM-C $1,415.00
    BATTREAAA4PK Rechargeable Battery Pack $20.00
    CF12 Coupling Fluid - 12oz $30.00
    PRINTERBT Bluetooth Printer for PosiTector Advanced models Only $295.00
    USBAC AC Power Adapter, 100-230V $45.00
    LENSSHIELD-E Protective Lens Shield (pack of 5) $10.00
    PAPERBT 10 rolls of printer paper $20.00
    STDB1 5 Step Certified Steel Block B1 with inch units, 100, 200, 300, 400, 500 mil steps $350.00
    STDB1M 5 Step Certified Steel Block B1M with metric units, 2.5, 5, 7.5, 10, 12.5 mm steps $350.00
    GEL_P 4 oz Ultrasonic Gel, case of 12 $170.00
    UTG Extreme Corrosion Probe Only - PRBUTGCX-C $815.00
