Checkline TI-UMX2 Underwater Ultrasonic Thickness Gauge with T-074-2906 Probe, Z-185-0001



Price: $ 4,000.00

Checkline TI-UMX2 Underwater Ultrasonic Thickness Gauge

Range:0.025 - 9.999 inches - 0.63 - 254.0 mm


Resolution: .001" (0.01 mm)
Rated for dive depths up to 1000 ft (300 meters)

Measuring Range in Steel

  • 0.025 - 19.99 inches
  • 0.63 - 508.0 mm

The Checkline TI-UMX2 Underwater Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals at depths of up to 1000 feet (300 Meters). Also measures Coating Thickness.

A back-lit LCD display and illuminated housing allow divers to easily read measurements in dark water.

An over-sized control button and clever menu structure allows easy gauge setup and navigation through menus above or below water even when wearing thick gloves.

The TI-UMX-2 can store up to 5000 readings including A-Scan Waveforms and settings for each individual measurement. There are 2 file structure options; sequential with auto identifier and alpha numeric grid (row/column) format. The UMX-2 can transfer data and configuration settings to a PC using our DataComm software. (Software and transfer cable included)


line

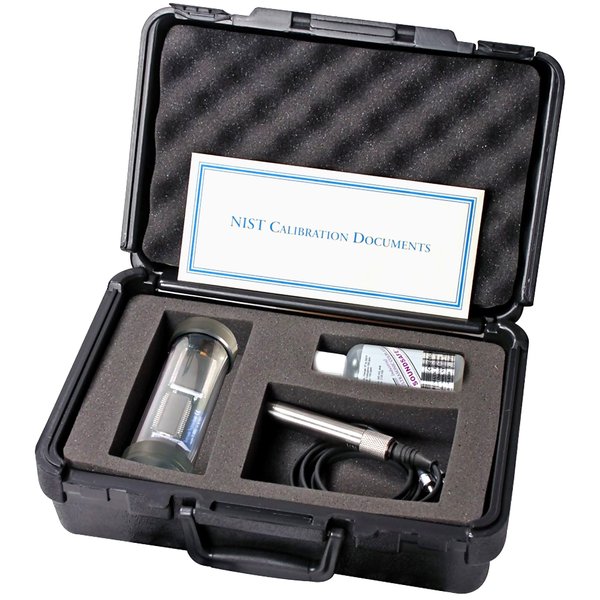

Kit Contents
line

  • TI-UMX2 Underwater Ultrasonic Thickness Gauge
  • 4 oz. bottle of coupling fluid
  • AA batteries
  • NIST-Traceable Calibration Certificate
  • Data transfer software
  • Serial output cable with USB converter
  • Spare gasket & lube kit including
  • Operating Instruction Manual
  • Carrying Case


line
Features
line

  • Housing is rated for dive depths up to 1000 ft (300 meters) with backlit display
  • Resolution of 0.001" (0.01 mm) user-selected units of inch or mm
  • Includes built-in datalogger for 5000 readings, settings and waveforms in sequential or "grid" (row/column) format
  • Automatic probe recognition and auto zero
  • Supplied with FREE NIST-Traceable Calibration Certificate
  • Supplied with data transfer cable and FREE data analysis software
  • Measure modes include: Pulse-Echo, Pulse-Echo w/ Coating, Echo-Echo and Triple Echo
  • CE-certified with 3-Year Warranty
  • Measures BOTH Wall and Coating Thickness
  • Both Dual Element and Single Membrane Probes are offered
  • Standard Probe supplied is 1/2"-5MHz HD-Coating, Underwater p/n T-074-2906
  • All settings for gauge and datalogging can be done via software if desired


lineSpecificationsline

Range in Steel0.025-19.99" (0.63 - 508.0 mm)
Note: exact range depends on probe used
Resolution.001" (0.01 mm)
Display4 - Digit, 0.5" Backlit LCD
Velocity Range6,500-33,000 ft./sec (2000-10,000 m/sec.)
ProbeSTANDARD: Underwater Type, 1/2"-5MHz Dual-Element HD-Coating Probe
OPTIONAL: Underwater Type, 1/2"-3.5MHz Dual-Element HD-Coating Probe
MEMBRANE: Inquire
Cable4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
Temp. LimitsAmbient: -20 to 120 F (-30 to 50 C)
Material: -0 to 200 F (-20 to 100 C
Special high temperature probes are optionally available.
Battery TypeTwo AA batteries
Battery Life200 hours
Weight2.8 pounds
Size3.5 x 7.5 x 2.75" | (63.5 W x 190.5 H x 69.85 D mm)
Accessories IncludedProbe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
WarrantyGauge: 3 Years
Probe: 90 Days
Operating ModesPE: Pulse-Echo
PECT: Pulse-Echo Coating
EE: Echo-Echo
EEE: Triple Echo TCG


line
Velocity Settingsline

The TI-UMX2 has 8 preset velocities and 1 custom velocity allowing the user to customize it for specific applications, or to tune the calibration to be optimized for a specific type of material. The list of preset velocities are as follows

  1. Aluminum 2024
  2. Stainless Steel 302
  3. Steel4340
  4. Iron
  5. Cast Iron
  1. PVC
  2. Polystyrene
  3. Polyurethane
  4. Custom 1

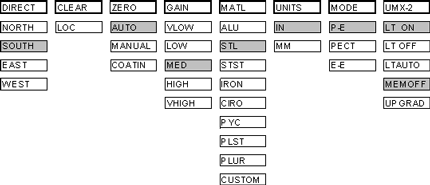

lineTI-UMX2 Menu Structureline

Use of single button and clever menu structure permits easy navigation through all settings when underwater

*Highlighted fields indicate default settings.


lineDownloadsline

Checkline TI-UMX2 Underwater Ultrasonic Thickness Gauge - Instruction Manual

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Checkline TI-UMX2 Underwater Ultrasonic Thickness Gauge with T-074-2906 Probe, Z-185-0001 $4,000.00
Accessories Price
BATT-RC4AA-WC 4-pack AA Ni-MH Rechargeable Batteries & Charger Kit $35.00
A-185-0001 Maintenance Kit (includes 2 O-rings and 6 grams of lubricant) $6.00
T-074-2906 1/2" diameter, 5.0 MHz dual element transducer, hi-damp, coating, for TI-UMX2, Top in, Potted $605.00
T-074-9906 1/2" diameter, 3.5 MHz dual element, high-damp coating probe for TI-UMX2 $605.00
T-9441-2809 1/2" diameter, 5 MHz single element, membrane probe for TI-UMX2 $605.00
