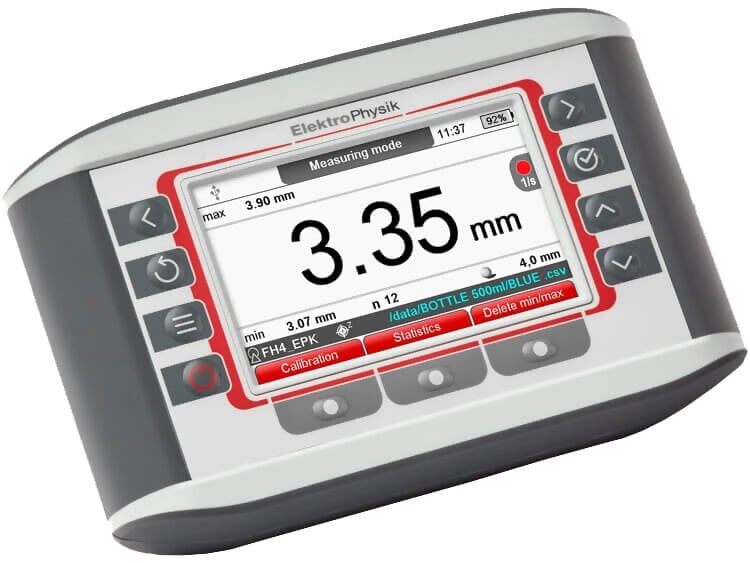

ElektroPhysik 80-190-0000 MiniTest-FH Magnetic Wall Thickness Gauge for Plastics, Glass, Titanium, and more

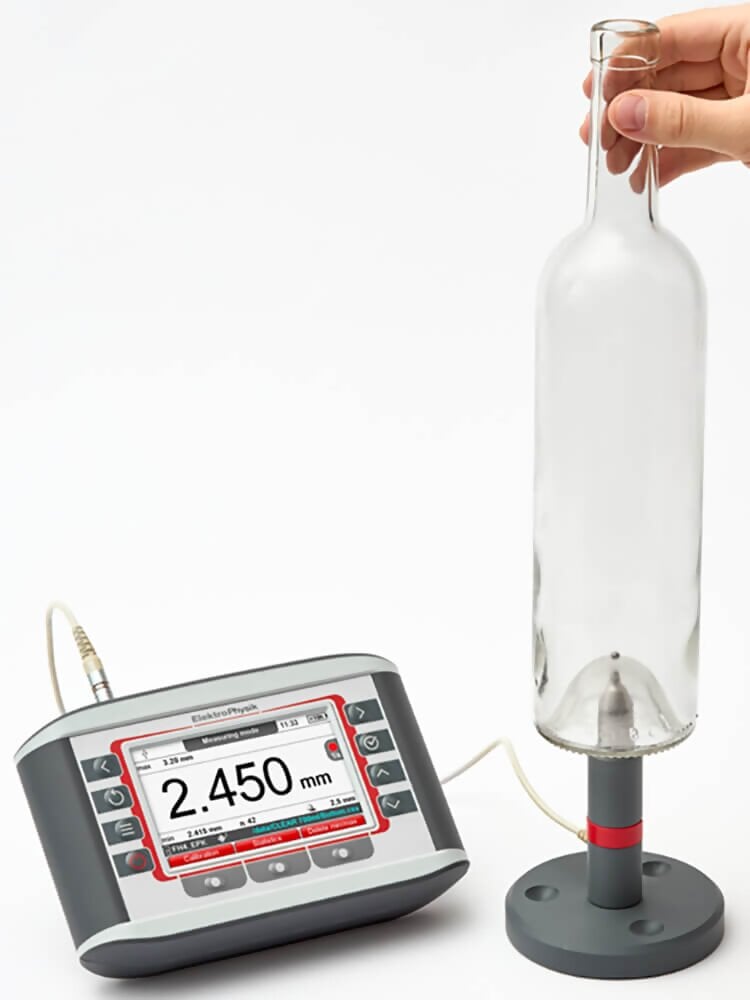

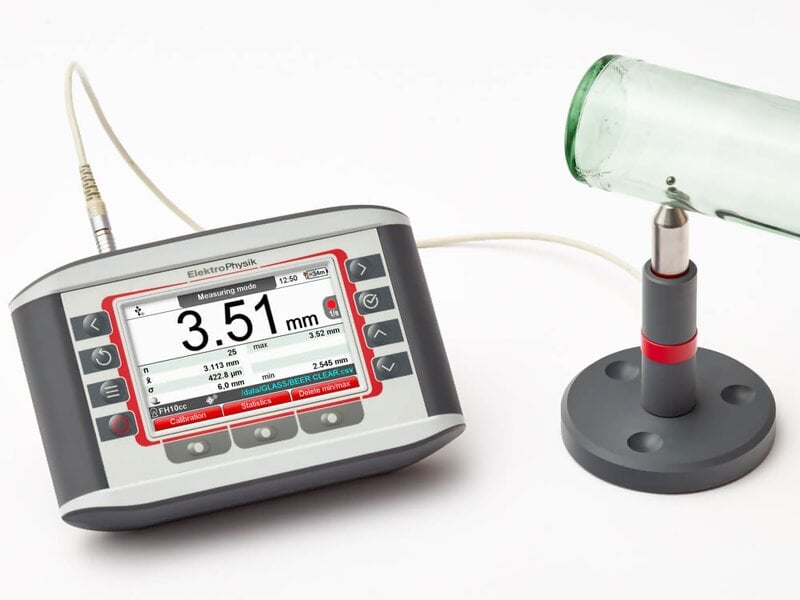

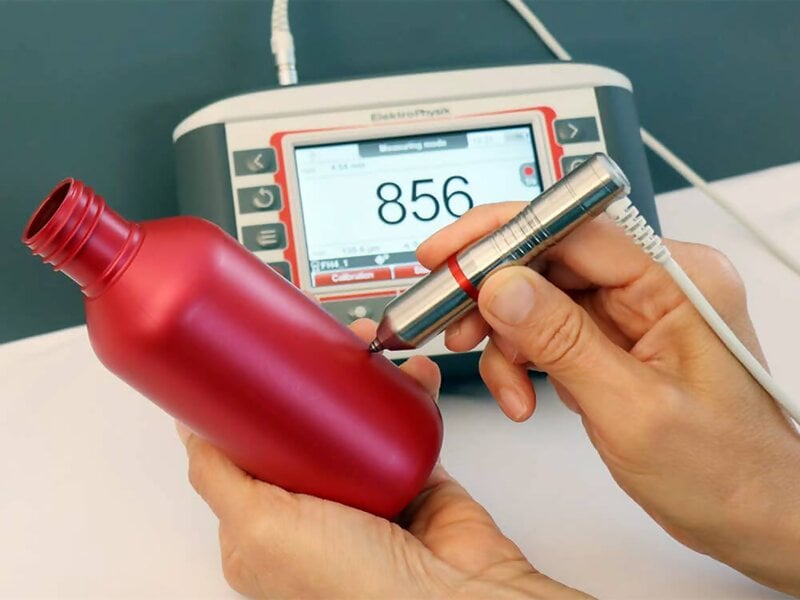

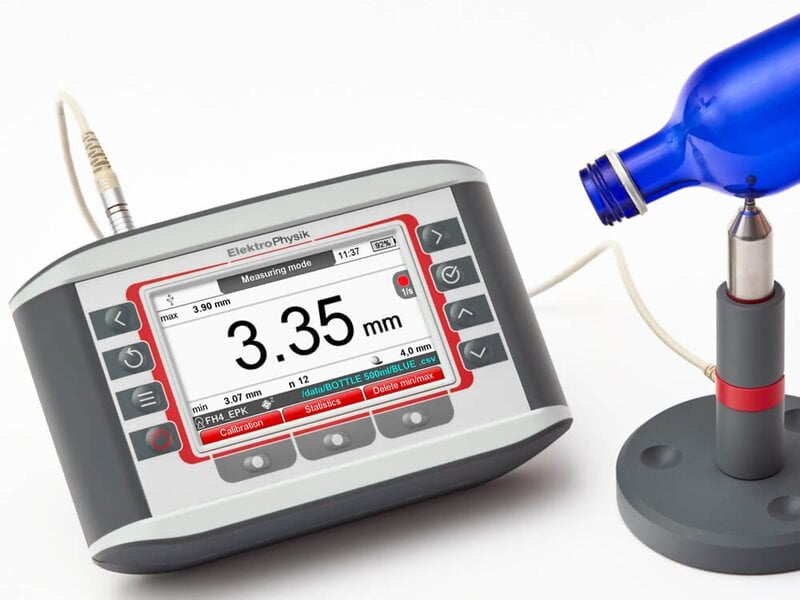

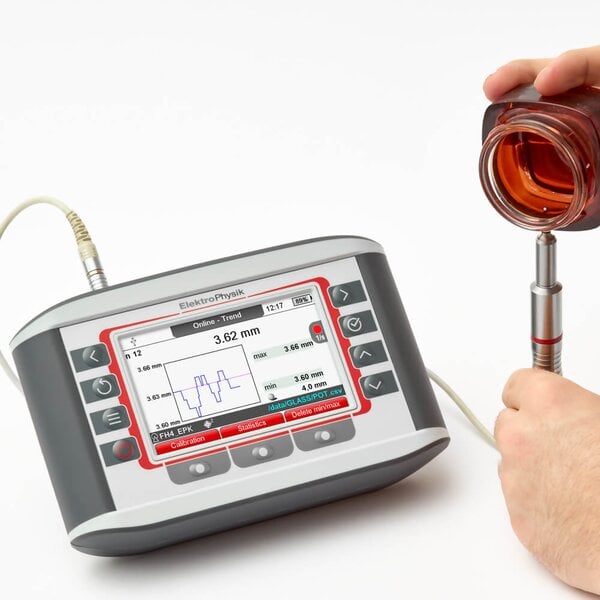

The ElektroPhysik 80-190-0000 MiniTest-FH Magnetic Wall Thickness Gauge is designed for non-destructive measurements up to 24mm / 1". The ElektroPhysik 80-190-0000 MiniTest-FH Magnetic Wall Thickness Gauge offers straightforward thickness measurements of non-magnetic materials such as plastic, glass, synthetics, non-magnetic metals, and composites. Components with complex geometries can also be measured with ease.

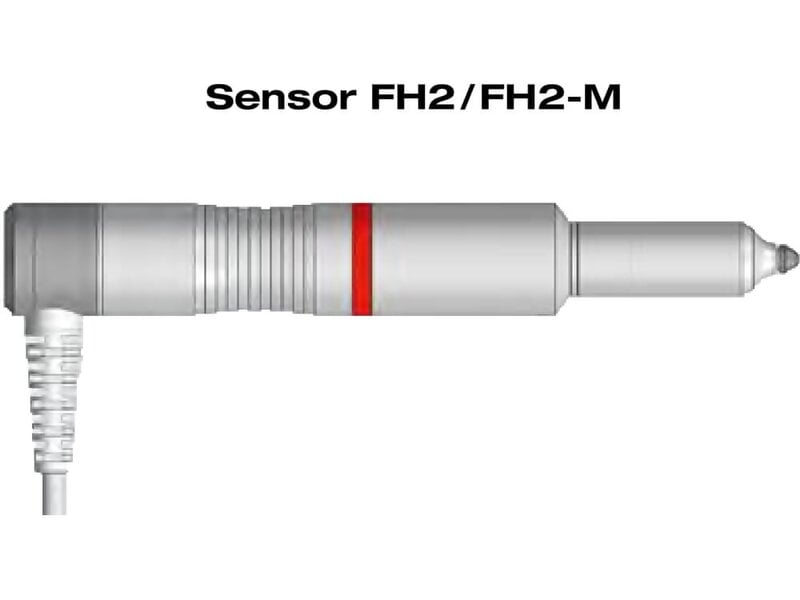

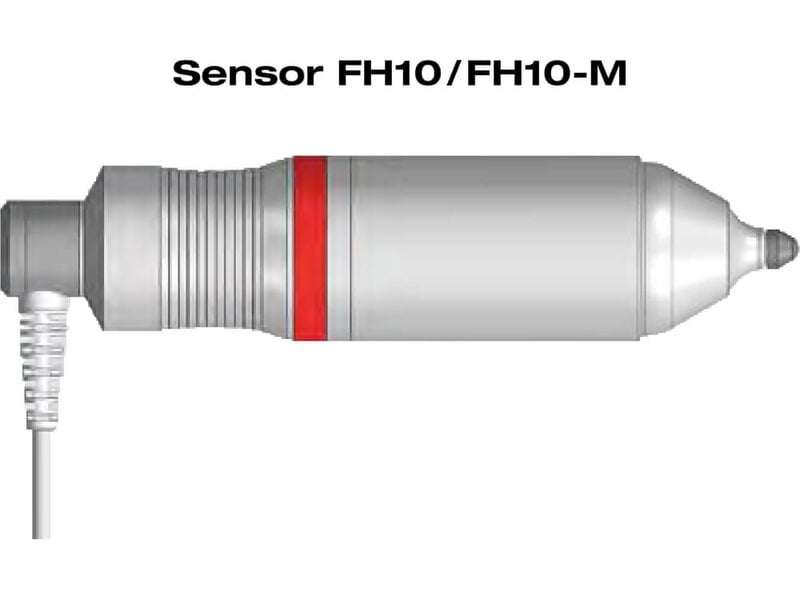

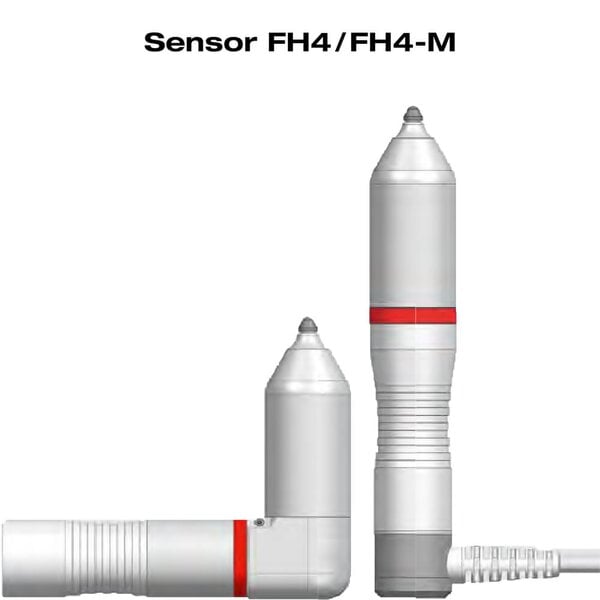

An intelligent SIDSP sensor enables the ElektroPhysik 80-190-0000 MiniTest-FH Magnetic Wall Thickness Gauge to provide high-precision measurement and reproducibility while compensating for the influence of temperatures in the measuring environment and in the object being measured. A wide range of sensors allows to adapt to different applications and measuring tasks.

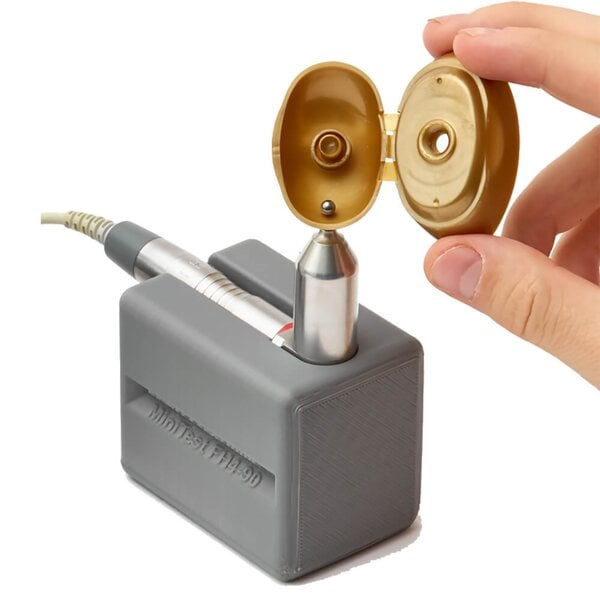

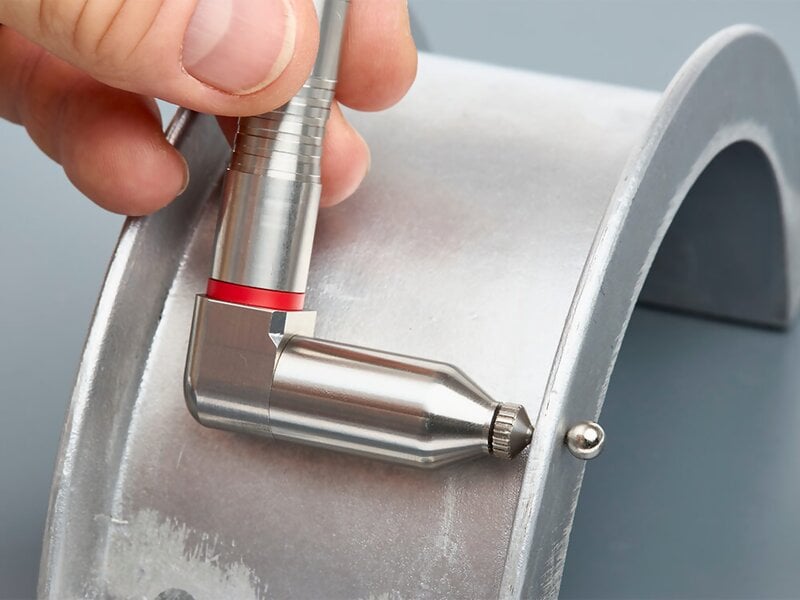

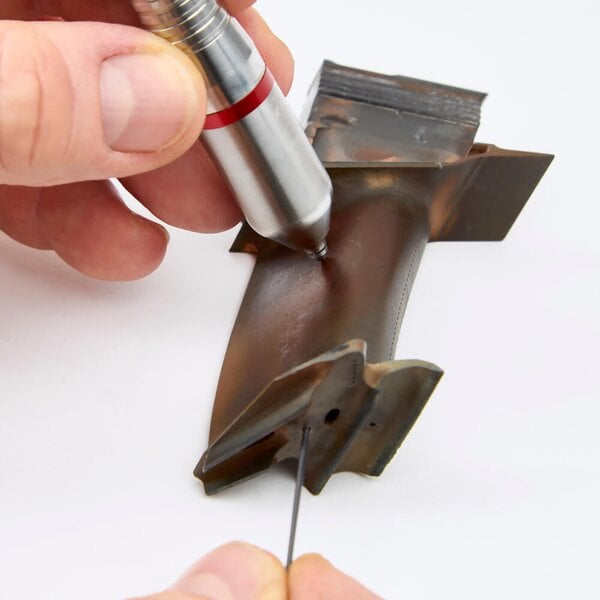

Thickness is determined by measuring the distance of a reference ball or wire to the sensor tip. The reference ball is attracted by a powerful magnet positioned directly behind the sensor tip. The steel target balls are treated according to a specialized ElektroPhysik procedure which allows reproducibility of test results of up to 0.5%.

Special features such as an automatic calibration function for zero calibration and direct transfer of readings into a spreadsheet or CAQ system complement the high user comfort provided by the intuitive menu operation.

Kit Contents

ElektroPhysik 80-190-0000 MiniTest-FH Magnetic Wall Thickness Gauge Solid plastic case for transport and storage 8 AA NiMH batteries (integrated, chargeable via USB) USB connection and charging cable

Features

• High precision wall thickness measurement up to 24 mm
• Exceptional accuracy and repeatability through sensor-integrated digital signal processing (SIDSP)
• 2 million readings storable in more than 200 batches
• Up to 20 readings per second
• Wear-resistant sensors with hardened sensor tips
• Direct data import into evaluation software
• Bluetooth, USB and RS 232 C interfaces
• IP 65 Water and Dust Resistance

Specifications

Technical Details

Note 1:Includes additional calibration with 1mm diameter balls for use in small concave areas
Note 2:Use of Magnetic balls allows for extended measuring range
