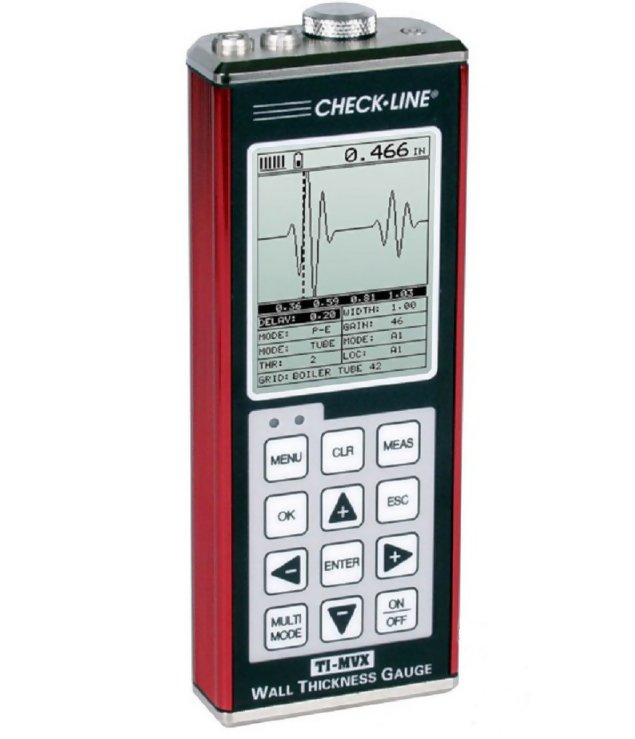

Checkline TI-MVX Ultrasonic Thickness Gauge with Enhanced Display



Price: $ 2,285.00

Checkline TI-MVX Ultrasonic Thickness Gauge with Enhanced Display
Enhanced graphic scope Displays A Scan & B Scan for a cross section view

Range: 0.025 - 9.999" - 0.63 - 254.0 mm


Probe Sold Separately
Resolution:.001" (0.01 mm)

Datalogging: YES

The Checkline TI-MVX Ultrasonic Thickness Gauge with Enhanced Display offers a series of advanced features including A-Scan, B-Scan as well as a complete alphanumeric datalogging system with storage capacity of thousands of data values and A-scan captures.

The Checkline TI-MVX TI-MVX Ultrasonic Thickness Gauge with Enhanced Display features the highest resolution graphic LCD on the market and is especially engineered for optimal ease of use. The TI-MVX Ultrasonic Thickness Gauge with Enhanced Display is supplied as a complete kit with all accessories in carrying case with FREE software, transfer cable and NIST-Traceable Calibration Certificate.


line
Kit Contents
line

  • Checkline TI-MVX Ultrasonic Thickness Gauge With Enhanced Display
  • 4 oz. bottle of coupling fluid
  • 2 AA batteries
  • NIST Calibration Certificate
  • Data Transfer Software
  • Serial Output
  • Carrying case
  • Instruction Manual

Probe Sold Separately


line
Features
line

  • The MVX is equipped with multiple viewing options to provide users with a complete set of inspection tools: (RF waveform, +/- Rectified waveform, Time based B-Scan, and Large Digits).
  • The A-Scan rectified mode is commonly used for detecting flaws/pits in pulse-echo mode and measuring through paint and coatings in echo-echo mode.
  • The time-based B-Scan feature of the MVX displays a cross section of the test material. It is commonly used to display the profile of the bottom surface of the test material.
  • Built in hardware AGC gain control for through paint measurements in multi mode operation.
  • The MVX has the ability to store 64 custom user defined setups. All factory setups can be selected, edited and saved to any setup location.
  • CE Certified
  • Use the visual alarm to set hi and lo limits for applications requiring specific tolerances. If the actual thickness value is above or below the limits, a red light is illuminated.
  • Use the find feature to locate the detection point, while automatically adjusting the display to bring the signal into view.
  • MVX also comes complete with our Windows PC software for transferring data to and from a PC.
  • Includes Flaw Inspection - Prove Up Mode, (special probe required)
  • The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the tesst material, and display the minimum measurement scanned.
  • Includes NIST Calibration Certificate


lineSpecificationsline

Range in Steel*Pulse-Echo Mode: Pit and Flaw detection measures from 0.63 to 254 millimeters (0.025 - 9.999inches)
Echo-Echo Mode: Thru Paint & coatings measures from 2.54 to 102 mm (0.1 - 4.0 inches).
Range will vary +/- depending on the thickness of the coating.
*Range varies by transducer, multiple transducers are required to cover entire range
Resolution.001 inches (0.01mm)
Velocity Range.0492 to .3936 in./ms
1250 to 9999 meters/sec
UnitsEnglish & Metric
Measurement ModesPulse-Echo (flaws, pits)
Echo-Echo (thru-paint)
Transducer TypesDual Element (1 to 10 MHz).
Memory16 megabit non-volatile ram
Memory capacity12,000 pages with 1 reading and waveform per page
Power SourceThree 1.5V alkaline or 1.2V NiCad AA cells
Battery LifeTypically operates for 150 hours on alkaline and 100 hours on NiCad
Auto Power offif idle 5 min
Display1/8 in. VGA grayscale display 62 x 45.7mm
KeyboardMembrane switch with twelve tactile keys
CaseExtruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Operating Temperature-14 to 140F (-10 to 60C)
Weigth, net383 grams
Dimensions63.5 W x 165 H x 31.5 D mm
Warranty2 year limited
CertificationCE Approved, Factory calibration traceable to national standards


lineOptional Accessoriesline

NIST-Traceable Steel Test Block
3 Sizes Available

  • Precision Machined and Finished
  • Includes NIST Report and Test Data

line

Uncertified Steel Test Block
For Ultrasonic Gauges
  • For convenient confirmation of thickness gauge calibration

line

TICC-M
Protective Holder for Ultrasonic Gauges

  • Constructed from heavy duty Cordura Nylon
  • Built-in belt loop

line

CF12
Coupling Fluid

  • Used to create an ultrasonic coupling between the probe and material to be measured
  • 12 oz Bottle

line

V-Block
Transducer Holder

  • The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas

line

TICC-MVX
Protective Holder for Ultrasonic Gauges

  • Constructed from heavy duty Cordura Nylon
  • Includes wrist & shoulder straps


lineDownloadsline

TI-MVX Ultrasonic Thickness Gauge with Enhanced Display - Certificate
TI-MVX Ultrasonic Thickness Gauge with Enhanced Display - Software
TI-MVX Ultrasonic Thickness Gauge with Enhanced Display - Instruction Manual
TI-MVX Ultrasonic Thickness Gauge with Enhanced Display - Data Sheet

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Checkline TI-MVX Ultrasonic Thickness Gauge with Enhanced Display $2,285.00
Accessories Price
T-102-3300 1/4" diameter, 7.5 MHz, dual element transducer (Standard Probe for TI-25MX) $300.00
V-Block Transducer Holder (For 3/16" & 1/4" Transducers only), F-000-7001 $175.00
T-101-2700 3/16" Diameter, 5.0 MHz Hi-damped transducer for thru paint measurement, Side In, Potted $305.00
BATT-RC4AA-WC 4-pack AA Ni-MH Rechargeable Batteries & Charger Kit $35.00
T-102-1000 - 1/4" diameter, 2.25 MHz, dual element transducer, Side In, Potted $285.00
T-104-1000 - 1/2" diameter, 2.25 MHz dual element transducer, Side In, Potted $295.00
T-104-2000 - 1/2" diameter, 5.0 MHz dual element transducer, Side In, Potted $275.00
T-104-0000 - 1/2" diameter, 1.00 MHz dual element transducer, Side In, Potted $290.00
T-101-2000-C - 3/16" diameter, 5.0 MHz dual element transducer with minimal contact area $285.00
T-044-2000 - 1/2" diameter 5.0 MHz dual element transducer Hi-Temp (650 F/344 C), Side in, Microdot $360.00
TI-25-UW-50 Wall Thickness Gauges 50 Foot Underwater Probe / Cable Assembly $650.00
Rex 14-1353 V-Block for O-rings and Small Samples $40.00
Rex 14-1352 V-Block Base Plate for O-rings and Small Samples $45.00
N-104-0020 LEMO 00 - Microdot Single Probe Transducer Cable, 4 foot length $120.00
A-302-6002 Protective Rubber Boot for TI / ZX Series Small Body Ultrasonic Thickness Gauges $80.00
CF12 Coupling Fluid - 12 oz / 354 ml $30.00
SB4 4 Step Steel Test Block, 0.1 / 0.2 / 0.4 / 0.6 inch - Uncertified, supplied in plastic case $125.00
SB6 6 Step Steel Test Block, 0.050 / 0.100 / 0.250 / 0.400 /0.600 / 0.800 Inch - Uncertified, supplied in wood case $200.00
SB5-SS 5 Step SS (304) Test Block, 0.100 / 0.200 / 0.300 / 0.400 / 0.500 Inch - Uncertified, supplied in plastic case $295.00
ISO-17025-SB ISO-17025 Calibration Certification for Step Test Blocks $165.00
SB-4H 4 Step Steel Calibration Test Block, 0.250, 0.500, 0.750, and 1.000 inch, with case $345.00
SB-4L 4 Step Steel Calibration Test Block, 0.040, 0.060, 0.080, and 0.100 inch, with case $345.00
SB-5L 5 Step Steel Calibration Test Block, 0.100, 0.200, 0.300, 0.0400, and 0.500 inch, with case $345.00
A-149-6002 Protective Rubber Boot for TI / ZX Series Tall Body Ultrasonic Thickness Gauges $100.00
TICC-MVX Protective Holder for for Long Body Ultrasonic Gauges, F-149-0001 $75.00
T-104-0600 1/2" diameter, 1.00 MHz dual element Composite transducer, Side In, Potted $320.00
N-110-0020 10' Single Lemo to Microdot Cable $95.00
N-104-0021-BNC TI-MVX FLaw Cable, Dual Lemo-00 with BNC Connector $85.00
