Checkline TI-25MX-WOP Ultrasonic Wall Thickness Gauge Complete Kit, without Probe

The Checkline TI-25MX Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side! It can measure thickness up to 36 inches (915 mm), depending upon the material and transducer. The Checkline TI-25MX combines the best features of the TI-25SX allowing the operator to select from 8 preset materials as well as program 2 custom material velocities. The preset materials are as follows:

Additionally, the user can adjustment of the velocity as desired and calibrate to a sample of known thickness - the optimal acoustic velocity is automatically calculated. In special circumstances, to optimize linearity over a wide range, the user can perform a 2 point calibration to two samples of known thickness. The optimal velocity is automatically calculated to provide the highest accuracy and linearity between the low and high calibration points. The calibration and other setup parameters can be locked to prevent any accidental adjustments.

The calibration can be locked to prevent any accidental adjustments.

The TI-25MX can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.

The TI-25MX probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed (IP65) to provide trouble-free operation under the toughest field conditions.

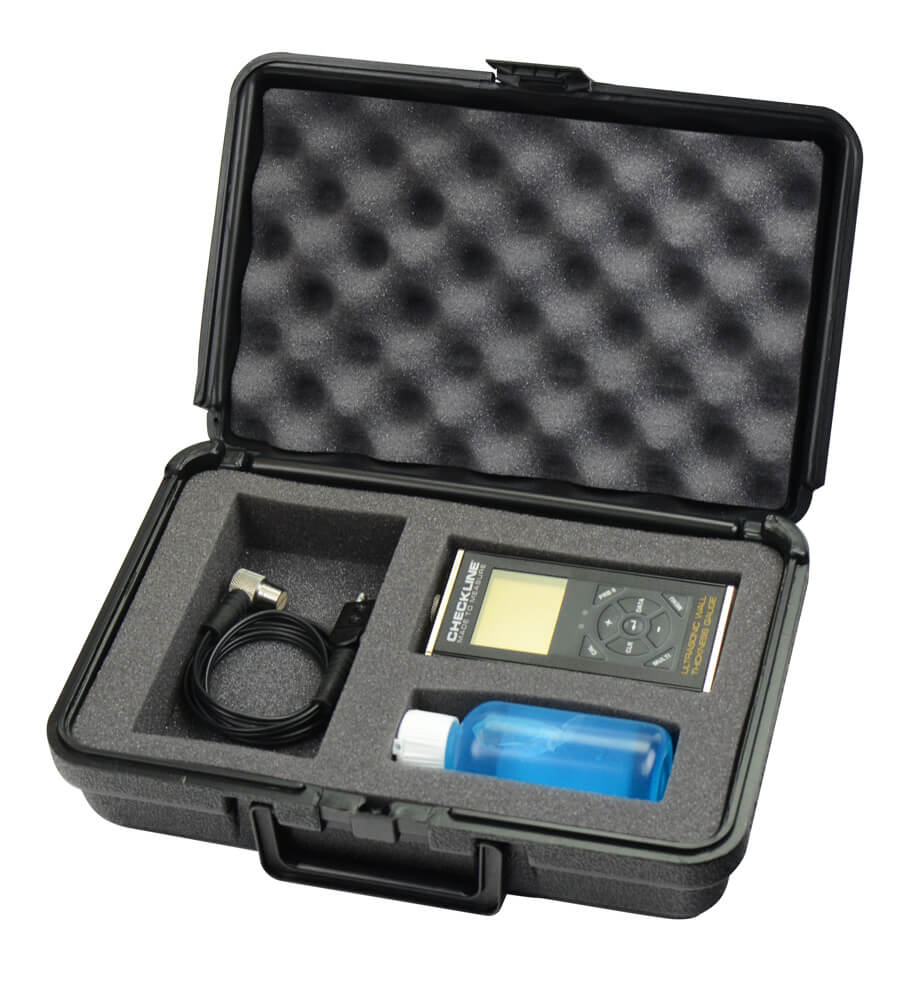

Kit Contents

Checkline TI-25MX Ultrasonic Wall Thickness Gauge Probe 4 oz. bottle of coupling fluid 2 AA batteries USB output cable NIST-Traceable Calibration Certificate Carrying case Instruction Manual

Features

• Includes NIST Traceable Calibration Certificate
• Resolution of 0.001 inch (0.01 mm)
• Switch-selected units for inches or mm
• User-selected Manual or Auto Zero of Transducer
• User can select from 8 preset materials as well as program 2 custom material velocities
• Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity
• 2-Point Calibration to optimize linearity over a wide measurement range, automatically calculates the optimal acoustic velocity
• Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed
• Adjustable GAIN in 5 steps to fine tune the gauge for use on challenging materials or applications
• Special-purpose probes are offered for a variety of applications (1 to 10 MHz)
• The extruded aluminum housing is impact-resistant and environmentally sealed (IP 65)
  to provide trouble-free operation under the toughest field conditions
• For underwater surveying, an optional 50 ft (15 meter) underwater probe/cable is available
• High visibility LCD Display is readable in all lighting conditions and temps as low as 22 F (-30 C)
• LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero and units
• Operates on two (2) AA Batteries - 45 hours continuous operation
• Selectable Backlight ON/OFF/AUTO
• 5 Year Warranty, CE-Certified and Made in USA

Measuring Limits

	Minimum Radius for Convex Surfaces	0.350" (8.89 mm)
	Minimum Radius for Concave Surfaces	3" (76.2 mm)
	Minimum Headroom	1" (25.0 mm)
	Minimum Sample Diameter	0.150" (3.8 mm)
	Minimum Substrate Thickness - F	na
	Minimum Substrate Thickness - NFe	na

Specifications
