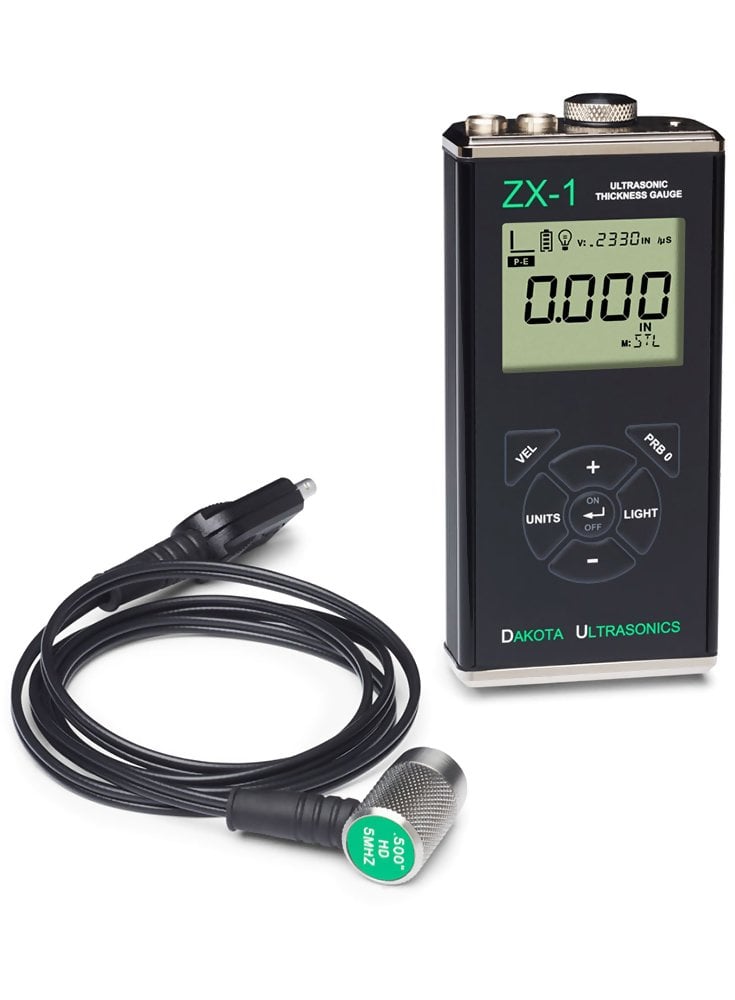

Wall Thickness Gages | Buy Dakota Ultrasonics ZX-1 Ultrasonic Wall Thickness Gauge Z-300-0001 / Z-300-0003 with T-102-2000 Probe

Manually adjust velocity to calibrate to any material type

Resolution:.001" (0.01 mm)

Includes NIST-Traceable Calibration Certificate, CE-Certified

5-Year Warranty, Made in USA

Datalogging:NO

Total Measuring Range (depends on material and transducer/probe type)
0.025 - 36.000 inches
0.63 - 914.4 mm

Measuring Range in Steel (with standard T-102-2000 probe)
0.040 - 8.00 inches
1.00 - 199.9 mm

The Dakota Ultrasonics ZX-1 Ultrasonic Wall Thickness Gauge Z-300-0001 / Z-300-0003 will hold a single velocity, making it the perfect choice applications where only one material is being tested day after day. With the preset velocity in the gauge, you simply turn it on and go to work.

The Dakota Ultrasonics ZX-1 Ultrasonic Wall Thickness Gauge Z-300-0001 / Z-300-0003allows the operator to adjust the acoustic velocity (speed of sound through a given material) from 0.0120 to .7300 in/s. 305 to 18,542 meters/sec to calibrate the gauge for use on a wide variety of materials. The programmed velocity can be locked to prevent accidental adjustment. Typically used on applications where a single material type is tested.

It is designed for measuring wall thickness and the extent of corrosion on a wide range of materials. It is commonly used for checking the thickness of pipes, tanks, plates and other objects. It is designed and built to withstand harsh industrial conditions and is backed by a 5 year limited warranty.

line

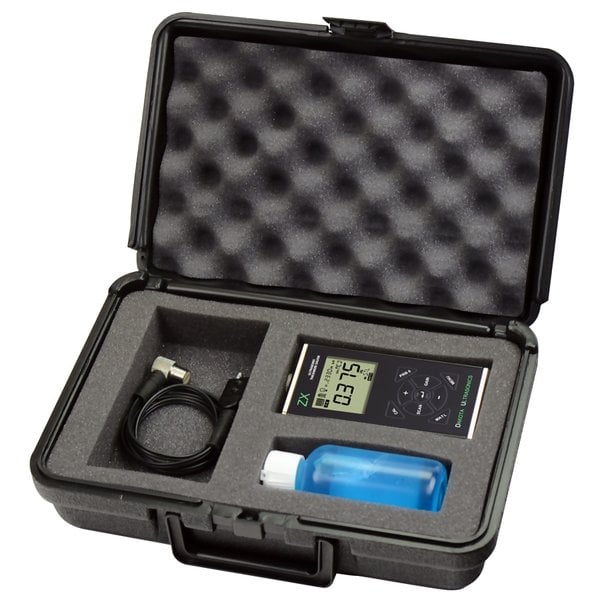

Kit Contents
line

Dakota Ultrasonics ZX-1 Ultrasonic Wall Thickness Gauge Z-300-0001 / Z-300-0003
Probe T-102-2000
4 oz. bottle of coupling fluid
2 AA batteries
NIST Traceable Calibration Certificate
Carrying case
Instruction Manual

line
Features
line

Includes NIST Traceable Calibration Certificate
5 Year Warranty, CE-Certified and Made in USA
Resolution of 0.001 inch (0.01 mm)
Switch-selected units for inches or mm
Selectable Backlight ON/OFF/AUTO
Acoustic Velocity (calibration) is manually adjusted via the keypad
Special-purpose probes are offered for a variety of applications (1 to 10 MHz)
The Transducer (probe) is waterproof and can be submerged in shallow water
The extruded aluminum housing is impact-resistant and environmentally sealed (IP 65)
to provide trouble-free operation under the toughest field conditions
For underwater surveying, an optional 50 ft (15 meter) underwater probe/cable is available
High visibility LCD Display is readable in all lighting conditions and temps as low as 22 F (-30 C)
LCD shows Thickness Value, Velocity Setting, Stability Indicator, Battery Indicator and units
Operates on two (2) AA Batteries - 45 hours continuous operation

line
Specifications
line

Total Measuring Range (steel)	0.025 - 36.000 inches 0.63 - 914.4 mm (depends on material and transducer/probe type)
Measuring Range (Steel)	0.040-8.000 inches 1.00-199.9 mm (with standard transducer T-102-2000)
Resolution	0.001 inch (0.01 mm)
Measuring Mode	Pulse-Echo (P-E)
Velocity Range	0.0120 to .7300 in/s. 305 to 18,542 meters/sec
Probe (Standard)	1/4", 5 MHz Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-2000
Cable	1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors
Probes (optional)	1 to 10 MHz, 3/16" up to 1 inch (custom probes available)
Probe Wearface	PEEK (Polyethylethylkytone)
LCD Display	Multi-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes
Display Backlight	Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
Display Update Rate	10 Hz (10 updates/sec)
Temp. Limits	Ambient: -30 to 75 C (-22 to 167 F) Material: -20 to 100 C (0 to 200 F) High temperature probes available
Battery Type	2x AA batteries (rechargeable batteries can be used)
Battery Life	45 hours continuous use
Housing	Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
Housing Rating	IP65
Keypad	Sealed membrane that is resistant to both water and petroleum products Seven or eight tactile-feedback keys
Weight	308 grams (11 ounces)
Pulse Repetition Frequency (PRF)	200 Hz (200 pulses/sec)
Dimensions	63.5 x 131.3 x 31.5 mm (2.5" x 5.17" x 1.25")
Accessories	Probe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
Certifications	NIST Traceable and MIL-STD-45662A
To Lock Settings	With gauge powered off, press and hold the "+" key while powering on the gauge The LOCK icon will be illuminated on the Display
To unLock Settings	With gauge powered off, press and hold the "-" key while powering on the gauge The LOCK icon will turn off
Warranty	Gauge: 5 Years Probes: 90 Days

line
Measuring Limits
line

	Minimum Radius for Convex Surfaces	0.350" (8.89 mm)
	Minimum Radius for Concave Surfaces	3" (76.2 mm)
	Minimum Headroom	1" (25.0 mm)
	Minimum Sample Diameter	0.150" (3.8 mm)
	Minimum Substrate Thickness - F	na
	Minimum Substrate Thickness - NFe	na
