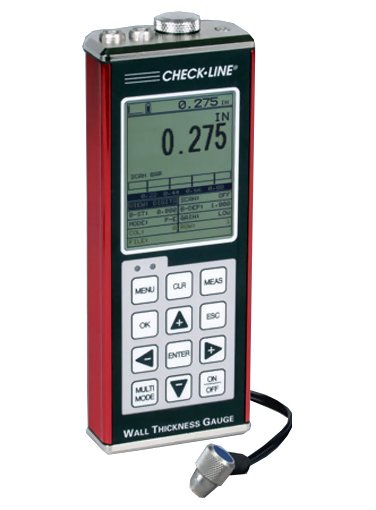

Checkline TI-MMX-SDL High Performance Ultrasonic Thickness Gauge



Price: $ 2,095.00

Checkline TI-MMX-SDL High Performance Ultrasonic Thickness Gauge
Enhanced Data Logging with time based B Scan for a cross section view

Range: 0.025 - 9.999" - 0.60 - 254.0 mm


Probe Sold Separately
Resolution:.001" (0.01 mm)
Datalogging: YES

The Checkline TI-MMX-SDL High Performance Data-Logging Thickness Gauge is a full featured ultrasonic thickness gauge offering an oversized display as well as a complete alphanumeric datalogging system with storage capacity of thousands of data values.

The Checkline TI-MMX-SDL High Performance Data-Logging Thickness Gauge features the highest resolution graphic LCD on the market and is especially engineered for optimal ease of use.


line
Kit Contents
line

  • Checkline TI-MMX-SDL High Performance Ultrasonic Thickness Gauge
  • 4 oz. bottle of coupling fluid
  • 2 AA batteries
  • NIST-Traceable Calibration Certificate
  • Data Transfer Software
  • Carrying case
  • Instruction Manual

TRANSDUCER SOLD SEPERATELY

line
Features
line

  • The time-based B-Scan feature displays a cross section of the test material. It is commonly used to display the profile of the bottom surface of the test material.
  • Built in hardware AGC gain control for through paint measurements in multi mode operation.
  • The TI-MMX-SDL High Performance Data-Logging Ultrasonic Thickness Gauge has the ability to store 64 custom user defined setups. All factory setups can be selected, edited and saved to any setup location.
  • CE Certified
  • Use the visual alarm to set hi and lo limits for applications requiring specific tolerances. If the actual thickness value is above or below the limits, a red light is illuminated.
  • TheTI-MMX-SDL High Performance Data-Logging Ultrasonic Thickness Gauge also comes complete with our Windows PC software for transferring data to and from a PC.
  • The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the test material, and display the minimum measurement scanned.
  • Use the AUTOFIND feature to locate the detection point, while automatically adjusting the display to bring the signal into view.
  • Includes NIST Calibration Certificate
  • 2 Year Warranty

lineSpecificationsline

Range in SteelPulse-Echo Mode: Pit and Flaw detection measures from 0.63 to 254 millimeters (0.025 - 9.999inches)

Echo-Echo Mode: Thru Paint & coatings measures from 2.54 to 102 mm (0.100 - 4.000 inches). Range will vary depending on the thickness of the coating.
Resolution.001 inches (0.01mm)
Velocity Range.0492 to .3936 in./ms
1250 to 9999 meters/sec
UnitsEnglish & Metric
Measurement ModesPulse-Echo (flaws, pits)
Echo-Echo (thru-paint)
Transducer TypesDual Element (1 to 10 MHz).
Memory16 megabit non-volatile ram
Memory capacity12,000 pages with 1 reading and waveform per page
Power SourceThree 1.5V alkaline or 1.2V NiCad AA cells
Battery LifeTypically operates for 150 hours on alkaline and 100 hours on NiCad
Auto Power offif idle 5 min
Display1/8 in. VGA grayscale display 62 x 45.7mm
KeyboardMembrane switch with twelve tactile keys
CaseExtruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Operating Temperature-14 to 140F (-10 to 60C)
Weight, net383 grams
Dimensions63.5 W x 165 H x 31.5 D mm
Warranty2 year limited
CertificationCE Approved, Factory calibration traceable to national standards


lineOptional Accessoriesline

NIST-Traceable Steel Test Block
3 Sizes Available

  • Precision Machined and Finished
  • Includes NIST Report and Test Data

line

Uncertified Steel Test Block
For Ultrasonic Gauges
  • For convenient confirmation of thickness gauge calibration

line

TICC-MVX
Protective Holder for Ultrasonic Gauges

  • Constructed from heavy duty Cordura Nylon
  • Includes wrist & shoulder straps

line

CF12
Coupling Fluid

  • Used to create an ultrasonic coupling between the probe and material to be measured
  • 12 oz Bottle

line

V-Block
Transducer Holder

  • The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas


lineDownloadsline

Checkline TI-MMX-SDL High Performance Ultrasonic Thickness Gauge - Instruction Manual
Checkline TI-MMX-SDL High Performance Ultrasonic Thickness Gauge -Certificate

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Checkline TI-MMX-SDL High Performance Ultrasonic Thickness Gauge $2,095.00
Accessories Price
T-102-3300 1/4" diameter, 7.5 MHz, dual element transducer (Standard Probe for TI-25MX) $300.00
T-101-2700 3/16" Diameter, 5.0 MHz Hi-damped transducer for thru paint measurement, Side In, Potted $325.00
BATT-RC4AA-WC 4-pack AA Ni-MH Rechargeable Batteries & Charger Kit $35.00
T-102-1000 - 1/4" diameter, 2.25 MHz, dual element transducer, Side In, Potted $285.00
T-104-1000 - 1/2" diameter, 2.25 MHz dual element transducer, Side In, Potted $295.00
T-104-2000 - 1/2" diameter, 5.0 MHz dual element transducer, Side In, Potted $275.00
T-044-2000 - 1/2" diameter 5.0 MHz dual element transducer Hi-Temp (650 F/344 C), Side in, Microdot $360.00
T-212-2001 - 1/4" diameter, 5.0 MHz dual element transducer Hi-Temp (900 F/500 C) Top in, Microdot $405.00
T-102-2700 1/4" diameter, 5.0 MHz Hi-Damped transducer for thru paint measurement, Side In, Potted $305.00
CF12 Coupling Fluid - 12 oz / 354 ml $30.00
SB4 4 Step Steel Test Block, 0.1 / 0.2 / 0.4 / 0.6 inch - Uncertified, supplied in plastic case $125.00
SB6 6 Step Steel Test Block, 0.050 / 0.100 / 0.250 / 0.400 /0.600 / 0.800 Inch - Uncertified, supplied in wood case $200.00
SB5-SS 5 Step SS (304) Test Block, 0.100 / 0.200 / 0.300 / 0.400 / 0.500 Inch - Uncertified, supplied in plastic case $295.00
ISO-17025-SB ISO-17025 Calibration Certification for Step Test Blocks $165.00
SB-4H 4 Step Steel Calibration Test Block, 0.250, 0.500, 0.750, and 1.000 inch, with case $345.00
SB-4L 4 Step Steel Calibration Test Block, 0.040, 0.060, 0.080, and 0.100 inch, with case $345.00
SB-5L 5 Step Steel Calibration Test Block, 0.100, 0.200, 0.300, 0.0400, and 0.500 inch, with case $345.00
T-104-2700 1/2" Diameter, 5.0 MHz dual element transducer, Hi-Damped, Side in, Potted $320.00
A-149-6002 Protective Rubber Boot for TI / ZX Series Tall Body Ultrasonic Thickness Gauges $100.00
N-306-0010 6 foot RS232 Cable (DB-9 to Lemo 2 pin) $65.00
USB-RS232-ADAP RS232 to USB Adapter $405.00
CF-4H-950F High Temp Coupling Fluid 4oz (600 - 780 F / 316 - 404 C) $150.00
TICC-MVX Protective Holder for for Long Body Ultrasonic Gauges, F-149-0001 $75.00
T-101-2000 3/16" diameter, 5.0 MHz dual element transducer, Side In, Potted $285.00
T-104-0600 1/2" diameter, 1.00 MHz dual element Composite transducer, Side In, Potted $320.00
