Dakota Ultrasonics MX2-DL (MVX) Ultrasonic Thickness Gauge Z-149-0004 / Z-149-0006 with Enhanced Display



Price: $ 2,850.00

Dakota Ultrasonics MX2-DL (MVX) Ultrasonic Thickness Gauge Z-149-0004 / Z-149-0006

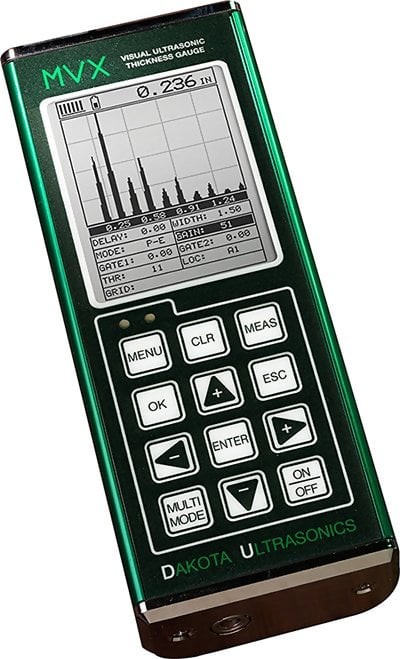

Dakota Ultrasonics MX2-DL (MVX) Ultrasonic Thickness Gauge Z-149-0004 / Z-149-0006 with Enhanced Display with Enhanced graphic scope Displays A Scan & B Scan for a cross section view
Resolution:.001" (0.01 mm)

The Dakota Ultrasonics MX2-DL (MVX) Ultrasonic Thickness Gauge Z-149-0004 / Z-149-0006 with Enhanced Display offers a series of advanced features including A-Scan, B-Scan as well as a complete alphanumeric datalogging system with storage capacity of thousands of data values and A-scan captures.

The Dakota Ultrasonics MX2-DL (MVX) Ultrasonic Thickness Gauge Z-149-0004 / Z-149-0006 with Enhanced Display features the highest resolution graphic LCD on the market and is especially engineered for optimal ease of use. It is supplied as a complete kit with all accessories in carrying case with FREE software, transfer cable and NIST-Traceable Calibration Certificate.


line
Kit Contents
line

  • Dakota Ultrasonics MX2-DL (MVX) Ultrasonic Thickness Gauge Z-149-0004 / Z-149-0006 with Enhanced Display With T-102-2700 Probe
  • 4 oz. bottle of coupling fluid
  • 2 AA batteries
  • NIST Traceable Calibration Certificate
  • Data Transfer Software
  • Serial Output
  • Carrying case
  • Instruction Manual


line
Features
line

  • The MVX is equipped with multiple viewing options to provide users with a complete set of inspection tools: (RF waveform, +/- Rectified waveform, Time based B-Scan, and Large Digits).
  • The A-Scan rectified mode is commonly used for detecting flaws/pits in pulse-echo mode and measuring through paint and coatings in echo-echo mode.
  • The time-based B-Scan feature of the MVX displays a cross section of the test material. It is commonly used to display the profile of the bottom surface of the test material.
  • Built in hardware AGC gain control for through paint measurements in multi mode operation.
  • The MVX has the ability to store 64 custom user defined setups. All factory setups can be selected, edited and saved to any setup location.
  • CE Certified
  • Use the visual alarm to set hi and lo limits for applications requiring specific tolerances. If the actual thickness value is above or below the limits, a red light is illuminated.
  • Use the find feature to locate the detection point, while automatically adjusting the display to bring the signal into view.
  • MVX also comes complete with our Windows PC software for transferring data to and from a PC.
  • Includes Flaw Inspection - Prove Up Mode, (special probe required)
  • The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the tesst material, and display the minimum measurement scanned.
  • Includes NIST-Traceable Calibration Certificate


lineSpecificationsline

Range in Steel*Pulse-Echo Mode:Pit and Flaw detection measures from 0.63 to 254 millimeters (0.025 - 9.999inches)
Echo-Echo Mode:Thru Paint & coatings measures from 2.54 to 102 mm (0.1 - 4.0 inches).
Range will vary +/- depending on the thickness of coating.
Resolution.001 inches (0.01mm)
Velocity Range.0492 to .3936 in./ms
1250 to 9999 meters/sec
UnitsEnglish & Metric
Measurement Modes- Pulse-Echo (flaws, pits)
- Echo-Echo (thru-paint)
Transducer TypesDual Element (1 to 10 MHz).
Memory16 megabit non-volatile ram
Memory capacity12,000 pages with 1 reading and waveform per page
Power SourceThree 1.5V alkaline or 1.2V NiCad AA cells
Battery LifeTypically operates for 150 hours on alkaline and 100 hours on NiCad
Auto Power offif idle 5 min
Display1/8 in. VGA grayscale display 62 x 45.7mm
KeyboardMembrane switch with twelve tactile keys
CaseExtruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Operating Temperature-14 to 140F (-10 to 60C)
Weigth, net383 grams
Dimensions63.5 W x 165 H x 31.5 D mm
Warranty2 year limited
CertificationCE Approved, Factory calibration traceable to national standards


lineDisplay Viewsline

A-Scan Scan Mode

  • The A-Scan rectified mode is the preferred display view for flaw and pit detection applications and measuring through paint and coatings in the echo-echo mode.
High Speed Scan Mode

line

B-Scan Mode

  • The B-Scan view displays a time-based cross section of the test material. It is commonly used to display the profile of the blind or underside of a pipe or tank.
B-Scan Mode

line

Large Digits

  • The Large Digits view provides a basic digital thickness gauge look and feel. The large display makes it easy for the operator to monitor the thickness readings.
High Speed Scan Mode


lineRelated Productsline

NIST-Traceable Steel Test Block
3 Sizes Available

  • Precision Machined and Finished
  • Includes NIST Report and Test Data

line

DataComm
Software for Thickness Gauges
ABQ

line

TICC-MVX
Protective Holder for Ultrasonic Gauges

  • Constructed from heavy duty Cordura Nylon
  • Built-in belt loop

line

Uncertified Steel Test Block
For Ultrasonic Gauges
  • For convenient confirmation of thickness gauge calibration


line
Downloads
line

Dakota Ultrasonics MX2-DL (MVX) Ultrasonic Thickness Gauge Z-149-0004 / Z-149-0006 with Enhanced Display - Instruction Manual
Dakota Ultrasonics Dual Element Corrosion Thickness Gauges - List

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Dakota Ultrasonics MX2-DL (MVX) Ultrasonic Thickness Gauge Z-149-0004 / Z-149-0006 with Enhanced Display $2,850.00
Accessories Price
T-102-3300 1/4" diameter, 7.5 MHz, dual element transducer, Side in, Potted $355.00
V-Block Transducer Holder (For 3/16" & 1/4" Transducers only), F-000-7001 $175.00
T-102-1000 - 1/4" diameter, 2.25 MHz, dual element transducer, Side In, Potted $320.00
T-104-1000 - 1/2" diameter, 2.25 MHz dual element transducer, Side In, Potted $330.00
T-104-0000 - 1/2" diameter, 1.00 MHz dual element transducer, Side In, Potted $330.00
T-044-2000 - 1/2" diameter 5.0 MHz dual element transducer Hi-Temp (650 F/344 C), Side in, Microdot $405.00
T-212-2001 - 1/4" diameter, 5.0 MHz dual element transducer Hi-Temp (900 F/500 C) Top in, Microdot $470.00
T-102-2700 1/4" diameter, 5.0 MHz Hi-Damped transducer for thru paint measurement, Side In, Potted $360.00
CF12 Coupling Fluid - 12 oz / 354 ml $30.00
A-149-6002 Protective Rubber Boot for TI / ZX Series Tall Body Ultrasonic Thickness Gauges $115.00
